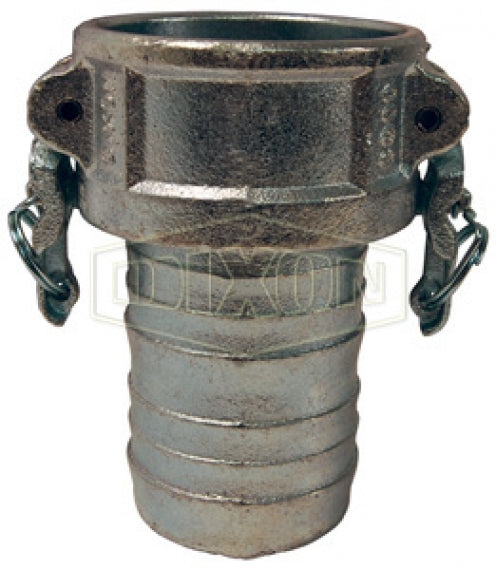

IC400 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 4" Coupler x 4" Hose Shank | Ductile Iron

IC400 by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 4" Coupler x 4" Hose Shank | Ductile Iron

Save $81.65 Save $81.65
$204.12
$204.12 - $204.12
$204.12
$122.47
$122.47 - $122.47
$122.47

Dixon Valve
Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: IC400 Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber gasket
  • Boss-Lock cam arms
  • Supplied with pull-ring safety clips
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action.
  • The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 Plated Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating Pressure
- - - RC050BL 3/4" x 1/2" 150 PSI
AC075 BC075 IC075 RC075BL 3/4" 250 PSI
AC100 BC100 IC100 RC100BL 1" 250 PSI
AC125 BC125 - RC125BL 1-1/4" 250 PSI
AC150 BC150 IC150 - 1-1/2" 250 PSI
AC200 BC200 IC200 - 2" 250 PSI
AC250 BC250 - - 2-1/2" 150 PSI
AC300 BC300 IC300 RC300BL 3" 125 PSI
AC400 BC400 IC400** - 4" 100 PSI
AC600 BC600 - - 6" 75 PSI
AC800* - - - 8" 50 PSI

* Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.

** Ductile iron
