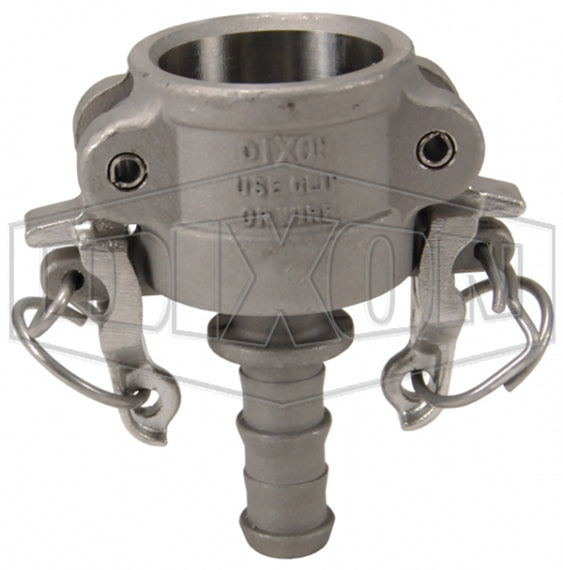

RC050BL by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 3/4" Coupler x 1/2" Hose Shank | 316 Stainless Steel

Name: RC050BL by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 3/4" Coupler x 1/2" Hose Shank | 316 Stainless Steel
Brand: Dixon
SKU: RC050BL Dixon
Price: 66.36 USD
Availability: InStock

Save $44.24

$110.60

$110.60 - $110.60

$110.60

$66.36

$66.36 - $66.36

$66.36

Dixon Valve
Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.

Specifications for Variant SKU: RC050BL Dixon
Brand:	Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1/2in Female Cam & Groove, 1/2in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile Rubber gasket Boss-Lock cam arms Supplied with pull-ring safety clips
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action. The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
-	-	-	RC050BL	3/4" x 1/2"	150 PSI
AC075	BC075	IC075	RC075BL	3/4"	250 PSI
AC100	BC100	IC100	RC100BL	1"	250 PSI
AC125	BC125	-	RC125BL	1-1/4"	250 PSI
AC150	BC150	IC150	-	1-1/2"	250 PSI
AC200	BC200	IC200	-	2"	250 PSI
AC250	BC250	-	-	2-1/2"	150 PSI
AC300	BC300	IC300	RC300BL	3"	125 PSI
AC400	BC400	IC400**	-	4"	100 PSI
AC600	BC600	-	-	6"	75 PSI
AC800*	-	-	-	8"	50 PSI

* Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.

** Ductile iron

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
