JS2169 by Band-It | BAND-IT® Junior® Smooth ID Clamp | 6" ID | 3/4" Width | 0.030" Thickness | 201 Stainless Steel | 25/Box

Save $17.58

$137.37

$137.37 - $137.37

$137.37

$119.79

$119.79 - $119.79

$119.79

Band-It®

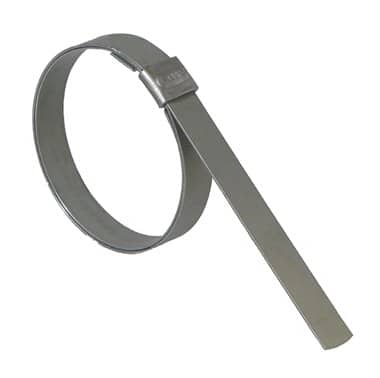

BAND-IT Junior® Smooth ID

Smooth ID Clamps reduce the risk of leaks especially when used on thin walled hoses.

Package Quantity: 25 EA

Quantity

Specifications for Variant SKU: JS2169 Band-It
Brand:	Junior
Series:	Junior Smooth ID Clamp
Material(s):	201 Stainless Steel
Clamp Thickness:	0.03
Clamp Width:	0.75
Maximum Clamp I.D.:	6

Features

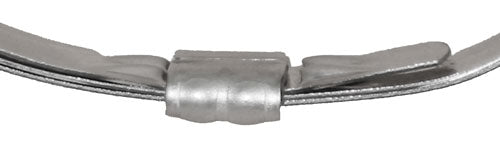

Widest choice of sizes and materials in a leak resistant design. Vibration resistant lip wrap lock design. Lock is formed by a simple lever movement. No hammering or crimping. Unique buckle nest and smooth ID design reduces leak paths compared to Center Punch Clamps. Double wrapped for additional strength. Various materials for different corrosive environments. Note: Some sizes have been discontinued by the manufacturer. The suggested replacement clamps are listed in the table below.

Suggested Band Clamp Widths, Rollover Style: (Use with Juniors & Junior Smooth Clamps)
Hose ID	Clamp Band Width
< 1/2"	3/8"
1/2" - 3/4"	1/2"
3/4" - 2"	5/8"
> 2"	3/4"

201 Stainless Steel Part Number	316 Stainless Steel Part Number	Galvanized Carbon Steel Part Number	Width	Thickness	Inside Diameter	Package Weight	Package Quantity	Application Tools
JS2429	-	-	1/4"	0.020"	1.0"	2.1 Lbs	100/Box	C00169 J00169 C00269 IT2000 S35099 S75099
JS2419	-	-	1/4"	0.020"	1.375"	2.5 Lbs	100/Box
JS2529	-	-	1/4"	0.020"	1.5"	2.6 Lbs	100/Box
JS2539	-	-	1/4"	0.020"	2.0"	3.2 Lbs	100/Box
JS2209	-	-	1/4"	0.020"	2.5"	3.7 Lbs	100/Box
JS2569	-	-	1/4"	0.020"	2.75"	3.8 Lbs	100/Box
JS2449	-	-	1/4"	0.020"	3"	4.2 Lbs	100/Box
JS2579	-	-	1/4"	0.020"	3.5"	4.6 Lbs	100/Box

JS2019	JS4019	JS3019	3/8"	0.025"	0.8125"	3.6 Lbs	100/Box	C00169 J00169 J05069** C00269 IT5000 S35099 S75099
JS2439	-	JS3439	3/8"	0.025"	1.0"	3.9 Lbs	100/Box
JS2029	JS4029	JS3029	3/8"	0.025"	1.375"	5.0 Lbs	100/Box
JS2459	JS4459	JS3459	3/8"	0.025"	2.0"	5.9 Lbs	100/Box
JS2219	-	-	3/8"	0.025"	2.5"	6.8 Lbs	100/Box
JS2469	-	-	3/8"	0.025"	3.0"	7.5 Lbs	100/Box
JS2559	-	-	3/8"	0.025"	3.5"	8.6 Lbs	100/Box
-	JS4489	-	3/8"	0.025"	4.0"	9.5 Lbs	100/Box

JS2039	-	JS3039	1/2"	0.030"	1.0"	6.5 Lbs	100/Box	C00169 J00169 J05069** C00269 S35099 S75099
JS2049	JS4049	JS3049	1/2"	0.030"	1.25"	7.2 Lbs	100/Box
JS2319	-	-	1/2"	0.030"	1.5"	8.1 Lbs	100/Box
JS2369	-	JS3369	1/2"	0.030"	1.75"	8.7 Lbs	100/Box
JS2379	-	-	1/2"	0.030"	2.0"	9.4 Lbs	100/Box
JS2339	-	JS3339	1/2"	0.030"	2.5"	10.8 Lbs	100/Box
JS2309	-	JS3309	1/2"	0.030"	2.75"	11.3 Lbs	100/Box
JS2349	JS4349	-	1/2"	0.030"	3.0"	12.2 Lbs	100/Box
JS2479	-	-	1/2"	0.030"	3.5"	13.6 Lbs	100/Box
JS2499	-	-	1/2"	0.030"	4.0"	14.9 Lbs	100/Box
JS2059	JS4059	JS3059	5/8"	0.030"	1.5"	10.4 Lbs	100/Box
JS2069	JS4069	JS3069	5/8"	0.030"	1.75"	11.3 Lbs	100/Box
JS2079	-	JS3079	5/8"	0.030"	2.0"	12.2 Lbs	100/Box
JS2089	-	JS3089	5/8"	0.030"	2.25"	13.3 Lbs	100/Box
JS2099	JS4099	JS3099	5/8"	0.030"	2.5"	13.9 Lbs	100/Box
JS2109	-	JS3109	3/4"	0.030"	2.75"	9.2 Lbs	50/Box
JS2119	JS4119	JS3119	3/4"	0.030"	3.0"	9.7 Lbs	50/Box
JS2129	-	JS3129	3/4"	0.030"	3.5"	10.8 Lbs	50/Box
JS2139	JS4139	JS3139	3/4"	0.030"	4.0"	6.1 Lbs	25/Box
JS2149	JS4149	JS3149	3/4"	0.030"	4.5"	6.7 Lbs	25/Box
JS2159	JS4159	JS3159	3/4"	0.030"	5.0"	7.2 Lbs	25/Box
JS2169	-	-	3/4"	0.030"	6.0"	8.2 Lbs	25/Box
JS2179	-	JS3179	3/4"	0.030"	6.5"	9.2 Lbs	25/Box
JS2189	-	JS3189	3/4"	0.030"	7.0"	10.2 Lbs	25/Box
JS2199	-	-	3/4"	0.030"	8.0"	11.0 Lbs	25/Box

**Junior® Adapters, either J00169 or J05069, must be used with C00169.

BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications

Band-It

Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries.
