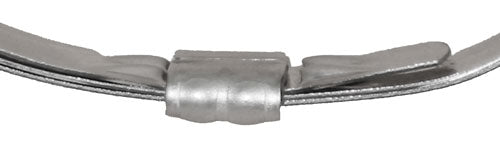

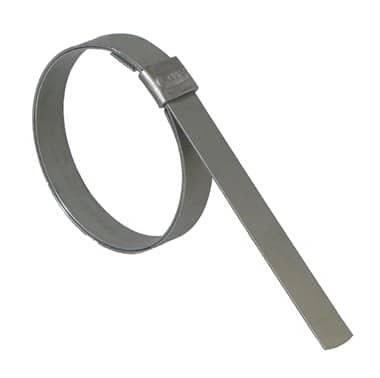

JS2449 by Band-It | BAND-IT® Junior® Smooth ID Clamp | 3" ID | 1/4" Width | 0.020" Thickness | 201 Stainless Steel | 100/Box
JS2449 by Band-It | BAND-IT® Junior® Smooth ID Clamp | 3" ID | 1/4" Width | 0.020" Thickness | 201 Stainless Steel | 100/Box
JS2449 by Band-It | BAND-IT® Junior® Smooth ID Clamp | 3" ID | 1/4" Width | 0.020" Thickness | 201 Stainless Steel | 100/Box

JS2449 by Band-It | BAND-IT® Junior® Smooth ID Clamp | 3" ID | 1/4" Width | 0.020" Thickness | 201 Stainless Steel | 100/Box

Save $17.72 Save $17.72
$159.50
$159.50 - $159.50
$159.50
$141.78
$141.78 - $141.78
$141.78

Band-It®
BAND-IT Junior® Smooth ID

Smooth ID Clamps reduce the risk of leaks especially when used on thin walled hoses.

Package Quantity: 100 EA

Specifications for Variant SKU: JS2449 Band-It
Brand: Junior
Series: Junior Smooth ID Clamp
Material(s): 201 Stainless Steel
Clamp Thickness: 0.02
Clamp Width: 0.25
Maximum Clamp I.D.: 3
Features
  • Widest choice of sizes and materials in a leak resistant design.
  • Vibration resistant lip wrap lock design.
  • Lock is formed by a simple lever movement. No hammering or crimping.
  • Unique buckle nest and smooth ID design reduces leak paths compared to Center Punch Clamps.
  • Double wrapped for additional strength.
  • Various materials for different corrosive environments.
  • Note: Some sizes have been discontinued by the manufacturer. The suggested replacement clamps are listed in the table below.
Suggested Band Clamp Widths, Rollover Style:
(Use with Juniors & Junior Smooth Clamps)
Hose ID Clamp Band Width
< 1/2" 3/8"
1/2" - 3/4" 1/2"
3/4" - 2" 5/8"
> 2" 3/4"
201 Stainless Steel
Part Number		 316 Stainless Steel
Part Number		 Galvanized Carbon Steel
Part Number		 Width Thickness Inside Diameter Package Weight Package Quantity Application Tools
JS2429 - - 1/4" 0.020" 1.0" 2.1 Lbs 100/Box C00169**
J00169**
C00269
IT2000
S35099
S75099
JS2419 - - 1/4" 0.020" 1.375" 2.5 Lbs 100/Box
JS2529 - - 1/4" 0.020" 1.5" 2.6 Lbs 100/Box
JS2539 - - 1/4" 0.020" 2.0" 3.2 Lbs 100/Box
JS2209 - - 1/4" 0.020" 2.5" 3.7 Lbs 100/Box
JS2569 - - 1/4" 0.020" 2.75" 3.8 Lbs 100/Box
JS2449 - - 1/4" 0.020" 3" 4.2 Lbs 100/Box
JS2579 - - 1/4" 0.020" 3.5" 4.6 Lbs 100/Box
JS2019 JS4019 JS3019 3/8" 0.025" 0.8125" 3.6 Lbs 100/Box C00169**
J00169**
J05069**
C00269
IT5000
S35099
S75099
JS2439 - JS3439 3/8" 0.025" 1.0" 3.9 Lbs 100/Box
JS2029 JS4029 JS3029 3/8" 0.025" 1.375" 5.0 Lbs 100/Box
JS2459 JS4459 JS3459 3/8" 0.025" 2.0" 5.9 Lbs 100/Box
JS2219 - - 3/8" 0.025" 2.5" 6.8 Lbs 100/Box
JS2469 - - 3/8" 0.025" 3.0" 7.5 Lbs 100/Box
JS2559 - - 3/8" 0.025" 3.5" 8.6 Lbs 100/Box
- JS4489 - 3/8" 0.025" 4.0" 9.5 Lbs 100/Box
JS2039 - JS3039 1/2" 0.030" 1.0" 6.5 Lbs 100/Box C00169**
J00169**
J05069**
C00269
S35099
S75099
JS2049 JS4049 JS3049 1/2" 0.030" 1.25" 7.2 Lbs 100/Box
JS2319 - - 1/2" 0.030" 1.5" 8.1 Lbs 100/Box
JS2369 - JS3369 1/2" 0.030" 1.75" 8.7 Lbs 100/Box
JS2379 - - 1/2" 0.030" 2.0" 9.4 Lbs 100/Box
JS2339 - JS3339 1/2" 0.030" 2.5" 10.8 Lbs 100/Box
JS2309 - JS3309 1/2" 0.030" 2.75" 11.3 Lbs 100/Box
JS2349 JS4349 - 1/2" 0.030" 3.0" 12.2 Lbs 100/Box
JS2479 - - 1/2" 0.030" 3.5" 13.6 Lbs 100/Box
JS2499 - - 1/2" 0.030" 4.0" 14.9 Lbs 100/Box
JS2059 JS4059 JS3059 5/8" 0.030" 1.5" 10.4 Lbs 100/Box
JS2069 JS4069 JS3069 5/8" 0.030" 1.75" 11.3 Lbs 100/Box
JS2079 - JS3079 5/8" 0.030" 2.0" 12.2 Lbs 100/Box
JS2089 - JS3089 5/8" 0.030" 2.25" 13.3 Lbs 100/Box
JS2099 JS4099 JS3099 5/8" 0.030" 2.5" 13.9 Lbs 100/Box
JS2109 - JS3109 3/4" 0.030" 2.75" 9.2 Lbs 50/Box
JS2119 JS4119 JS3119 3/4" 0.030" 3.0" 9.7 Lbs 50/Box
JS2129 - JS3129 3/4" 0.030" 3.5" 10.8 Lbs 50/Box
JS2139 JS4139 JS3139 3/4" 0.030" 4.0" 6.1 Lbs 25/Box
JS2149 JS4149 JS3149 3/4" 0.030" 4.5" 6.7 Lbs 25/Box
JS2159 JS4159 JS3159 3/4" 0.030" 5.0" 7.2 Lbs 25/Box
JS2169 - - 3/4" 0.030" 6.0" 8.2 Lbs 25/Box
JS2179 - JS3179 3/4" 0.030" 6.5" 9.2 Lbs 25/Box
JS2189 - JS3189 3/4" 0.030" 7.0" 10.2 Lbs 25/Box
JS2199 - - 3/4" 0.030" 8.0" 11.0 Lbs 25/Box

**Junior® Adapters, either J00169 or J05069, must be used with C00169.

BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications

Band-It

Band-It

Founded in 1937 to produce fastening solutions for the Gates rubber company, BAND-IT has a long tradition of designing and developing new and innovative fastening solutions that withstand the harshest environments and keep people safe. BAND-IT clamps have been designed and manufactured to clamp, manage cable, identify and insulate for dozens of applications worldwide. BAND-IT products deliver the robust performance and durability essential to harsh duty, mission-critical applications in traditional and emerging industries.
