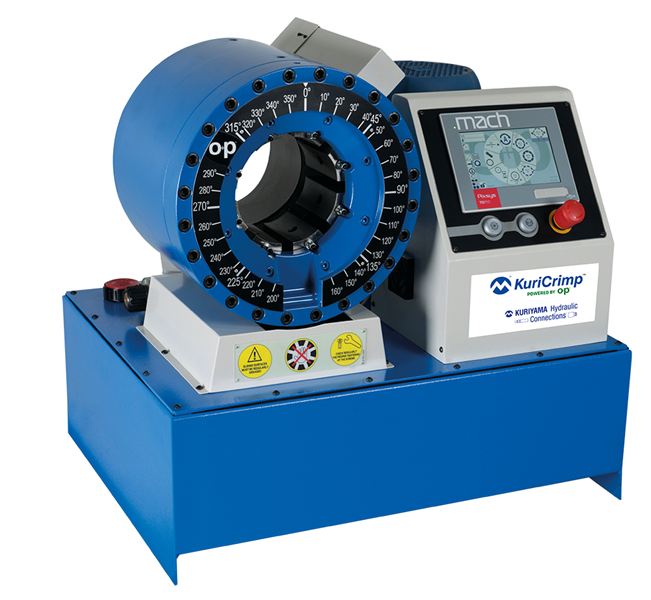

KC3-H130-230/1 KuriCrimp™ by Kuriyama | KC3-H130 Series | Standard Volume Crimper | 5.5 HP (230 V) 1 PH Motor | 210 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

KC3-H130-230/1 KuriCrimp™ by Kuriyama | KC3-H130 Series | Standard Volume Crimper | 5.5 HP (230 V) 1 PH Motor | 210 Ton Crimping Force | Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool

Save $8,536.97 Save $8,536.97
$29,879.39
$29,879.39 - $29,879.39
$29,879.39
$21,342.42
$21,342.42 - $21,342.42
$21,342.42

Kuriyama of America Inc.
KuriCrimp™ | KC3-H130 Series | Standard Volume Crimper

The production oriented KC3-H130 takes a step up in size capabilities, with the ability to crimp 2" wire braid and 4 SP hydraulic hose, as well as 1 1/2" 5,000 PSI 6 SP hydraulic hose intermittently.

The new intuitive MACH interface improves efficiency and reduces crimp cycle times.
Specifications for Variant SKU: KC3-H130-230/1 Kuriyama
Brand: KuriCrimp
Series: KC3-H130 Series

*1-1/2" limited to intermittent use with 5,000 PSI hose & 1-pc fittings

Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2 / 1-1/2*
  • 90° Fittings: 2
  • Industrial: 3
Crimping Force (ton):
  • 210
Opening Diameter:
  • Max. Without Dies (mm / in): 154 / 6.06
  • Max. With Dies (mm / in): 108 / 4.25
  • By Die Size (mm): Die Size + 35 / 1.38
Crimper Size:
  • L x W x H (in): 29.9 x 27.1 x 28.7
  • Weight (lbs): 650
Control Mechanism:
  • Full-color, touch-screen display.
  • Stores up to 1000 crimp specifications.
  • Built-in crimp diameter calculator.
  • Adjustable reopen diameter.
  • USB port option for data transfer.
  • Industrial hose crimp calculator.
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 65L = 17.18 Gal.
  Part Number Description
KC3-H130-230/1 5.5 HP (230 V) 1 PH Motor
210 Ton Crimping Force
Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool
KC1-H130-230/3 5.5 HP (230 V) 3 PH Motor
210 Ton Crimping Force
Includes: Electric Foot Pedal, Crimp Calculator, Die Segment Change Tool
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Crimp Calculator Die Segment Change Tool
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-31 31.0 - 36.0mm 31mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54 54.0 - 58.0mm 54mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63 63.0 - 69.0mm 63mm 100mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 KCPQCT-H130
Patented Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)		 Back Limit Switch
