KH-STOPFA8789 Stopflex by Kuriyama | Hose Band for Hydraulic Hose Safety Retention System | M8 Size | ID Range: 3.425" ID to 3.504" OD | Pack of 10
KH-STOPFA8789 Stopflex by Kuriyama | Hose Band for Hydraulic Hose Safety Retention System | M8 Size | ID Range: 3.425" ID to 3.504" OD | Pack of 10
KH-STOPFA8789 Stopflex by Kuriyama | Hose Band for Hydraulic Hose Safety Retention System | M8 Size | ID Range: 3.425" ID to 3.504" OD | Pack of 10

KH-STOPFA8789 Stopflex by Kuriyama | Hose Band for Hydraulic Hose Safety Retention System | M8 Size | ID Range: 3.425" ID to 3.504" OD | Pack of 10

Save $53.34 Save $53.34
$186.70
$186.70 - $186.70
$186.70
$133.36
$133.36 - $133.36
$133.36

Kuriyama of America Inc.

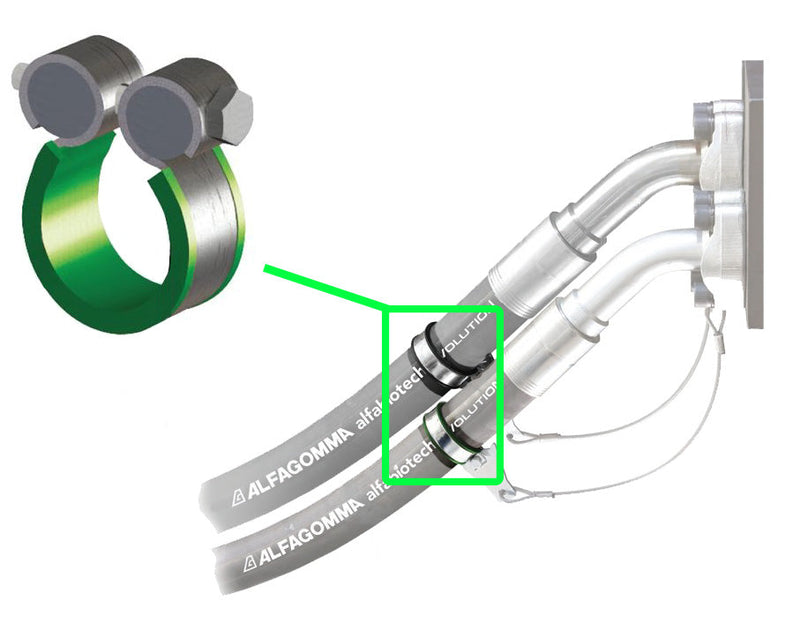

Stopflex | KH-STOPFA | Hose Band for Hydraulic Hose Safety Retention System

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.


Package Quantity: 10 Units

Specifications for Variant SKU: KH-STOPFA8789 Kuriyama
Brand: Stopflex
Series: KH-STOPFA Series
Applicable Specs & Approvals: ISO 4413
About:
  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø MIN Ø MAX Suggested SpiralReinforced HydraulicHose Pairings
(mm) (in) (mm) (in)
KH-STOPFA11115 M6 11mm 0.433" 11.5mm 0.453" -
KH-STOPFA12125 M6 12mm 0.472" 12.5mm 0.492" -
KH-STOPFA13135 M6 13mm 0.512" 13.5mm 0.531" -
KH-STOPFA1415 M6 14mm 0.551" 15mm 0.591" -
KH-STOPFA1617 M6 16mm 0.630" 17mm 0.669" E6K-04
KH-STOPFA1718 M6 17mm 0.669" 18mm 0.709" -
KH-STOPFA1819 M6 18mm 0.709" 19mm 0.748" E4K-06, E6K-06
KH-STOPFA2021 M6 20mm 0.787" 21mm 0.827" -
KH-STOPFA2122 M6 21mm 0.827" 22mm 0.866" -
KH-STOPFA2223 M6 22mm 0.866" 23mm 0.906" E4K-08, E6K-08
KH-STOPFA2425 M6 24mm 0.945" 25mm 0.984" -
KH-STOPFA2526 M6 25mm 0.984" 26mm 1.024" E4K-10, E5K-10
KH-STOPFA2627 M6 26mm 1.024" 27mm 1.063" -
KH-STOPFA2728 M6 27mm 1.063" 28mm 1.102" E6K-10
KH-STOPFA2829 M6 28mm 1.102" 29" 1.142" E4K-12, E5K-12
KH-STOPFA3031 M6 30mm 1.181" 31mm 1.220" E6K-12
KH-STOPFA3233 M6 32mm 1.260" 33mm 1.299" -
KH-STOPFA3435 M6 34mm 1.339" 35mm 1.378" -
KH-STOPFA3637 M6 36mm 1.417" 37mm 1.457" E4K-16, E5K-16
KH-STOPFA3839 M6 38mm 1.496" 39mm 1.535" E6K-16
KH-STOPFA3940 M6 39mm 1.535" 40mm 1.575" -
KH-STOPFA4041 M6 40mm 1.575" 41mm 1.614" -
KH-STOPFA4243 M6 42mm 1.654" 43mm 1.693" -
KH-STOPFA4344 M6 43mm 1.693" 44mm 1.732" E4K-20, E5K-20
KH-STOPFA4445 M6 44mm 1.732" 45mm 1.772" E3K-20
KH-STOPFA4547 M8 45mm 1.772" 47mm 1.850" E6K-20
KH-STOPFA4850 M8 48mm 1.890" 50mm 1.969" E3K-24, E4K-24
KH-STOPFA5153 M8 51mm 2.008" 53mm 2.087" -
KH-STOPFA5456 M8 54mm 2.126" 56mm 2.205" E5K-24, E6K-24
KH-STOPFA5759 M8 57mm 2.244" 59mm 2.323" -
KH-STOPFA6062 M8 60mm 2.362" 62mm 2.441" -
KH-STOPFA6365 M8 63mm 2.480" 65mm 2.559" E3K-32, E4K-32
KH-STOPFA6668 M8 66mm 2.598" 68mm 2.677" E5K-32, E6K-32
KH-STOPFA6971 M8 69mm 2.717" 71mm 2.795" -
KH-STOPFA7274 M8 72mm 2.835" 74mm 2.913" -
KH-STOPFA7577 M8 75mm 2.953" 77mm 3.031" -
KH-STOPFA7880 M8 78mm 3.071" 80mm 3.150" -
KH-STOPFA8183 M8 81mm 3.189" 83mm 3.268" -
KH-STOPFA8486 M8 84mm 3.307" 86mm 3.386" -
KH-STOPFA8789 M8 87mm 3.425" 89mm 3.504" -
KH-STOPFA9092 M8 90mm 3.543" 92mm 3.622" -
KH-STOPFA9395 M8 93mm 3.661" 95mm 3.740" -
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
