KIT4001D FlexFab Series 4000 4-ply Charge Air Connector Hose and Clamp Kit - 4.00" ID - 4.23" OD - Orange - 6"

KIT4001D by FlexFab | Series 4000 | 4-ply Charge Air Connector Hose and Clamp Kit | 4.00" ID | 4.23" OD | Orange | 6" Overall Length

Save $6.16

$61.56

$61.56 - $61.56

$61.56

$55.40

$55.40 - $55.40

$55.40

Flexfab
Industrial Hose - Series 4000 - Charge Air Connector Hose And Clamp Kits

Flexfab’s 4000 series CAC hose and clamp kits feature 4-ply silicone coated meta-aramid fabric with stainless steel pressure retention rings. They perform well in extreme temperatures and have all stainless steel spring-loaded T-bolt clamps. The clamps resist salt water and can be used in marine applications.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: KIT4001D Flexfab
Series:	Series 4000

Overview:

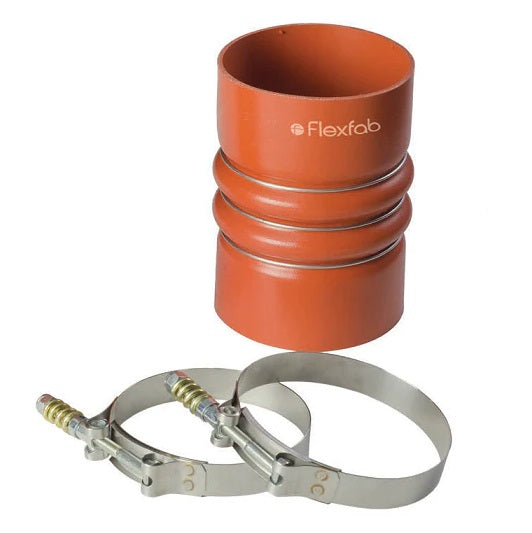

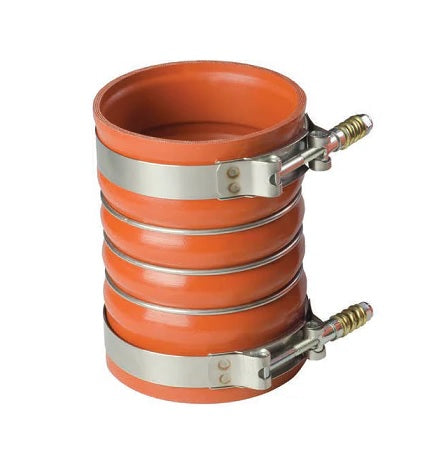

Flexfab 4000 Series Clamp Kits provide a CAC Hose and 2 Spring-Loaded T-Bolt Clamps with each kit. Hoses provided in these kits are compatible with both the hot or cold side of the Charge-Air Cooler System.
Specifications:
Charge Air Connector Hose: 4-Ply Silicone Coated Meta-Aramid Fabric With Stainless Steel Pressure Retention Rings. Temperature range is -65°F (-54°C) to +500°F (+260°C) Spring-Loaded T-bolt Clamps: All stainless steel Spring-Loaded T-bolt clamps. Resists salt water and may be used in marine applications

Part Number	Hose and Clamp Proivded in Kit	Inside Diameter	Outside Diameter	Overall Length Inches	Convolutes (Humps)	Stainless Steel Rings	Max Operating Pressure PSI
KIT4001D	4070-0001 FLX2588-0406	4.00" 4.06"	4.23" 4.38"	6.00 N/A	2 N/A	3 N/A	70 PSI N/A
KIT4002D	4070-0002 FLX2588-0406	4.00" 4.06"	4.23" 4.38"	6.00 N/A	2 N/A	3 N/A	70 PSI N/A
KIT4003D	7727-0001 FLX2588-0406	4.00" 4.06"	4.23" 4.38"	8.00 N/A	2 N/A	3 N/A	50 PSI N/A
KIT4004D	4073-0001 FLX2588-0356	3.50" 3.56"	3.73" 3.88"	6.00 N/A	2 N/A	3 N/A	70 PSI N/A
KIT4005D	4074-0001 FLX2588-0306	3.00" 3.06"	3.23" 3.38"	6.00 N/A	2 N/A	3 N/A	70 PSI N/A

*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
