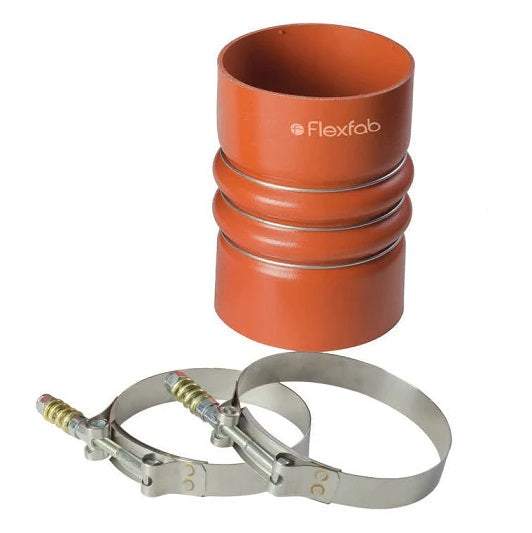

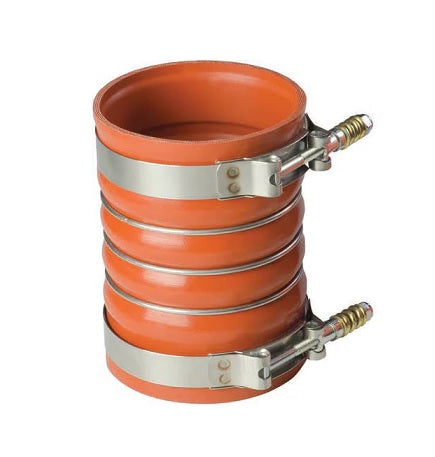

KIT4005D FlexFab Series 4000 4-ply Charge Air Connector Hose and Clamp Kit - 3.00" ID - 3.38" OD - Orange - 6"
KIT4005D by FlexFab | Series 4000 | 4-ply Charge Air Connector Hose and Clamp Kit | 3.00" ID | 3.38" OD | Orange | 6" Overall Length
KIT4005D FlexFab Series 4000 4-ply Charge Air Connector Hose and Clamp Kit - 3.00" ID - 3.38" OD - Orange - 6"

KIT4005D by FlexFab | Series 4000 | 4-ply Charge Air Connector Hose and Clamp Kit | 3.00" ID | 3.38" OD | Orange | 6" Overall Length

Save $42.34 Save $42.34
$105.85
$105.85 - $105.85
$105.85
$63.51
$63.51 - $63.51
$63.51

Flexfab
Industrial Hose - Series 4000 - Charge Air Connector Hose And Clamp Kits

Flexfab’s 4000 series CAC hose and clamp kits feature 4-ply silicone coated meta-aramid fabric with stainless steel pressure retention rings. They perform well in extreme temperatures and have all stainless steel spring-loaded T-bolt clamps. The clamps resist salt water and can be used in marine applications.
Specifications for Variant SKU: KIT4005D Flexfab
Series: Series 4000
Overview:
  • Flexfab 4000 Series Clamp Kits provide a CAC Hose and 2 Spring-Loaded T-Bolt Clamps with each kit. Hoses provided in these kits are compatible with both the hot or cold side of the Charge-Air Cooler System.
Specifications:
  • Charge Air Connector Hose:
    • 4-Ply Silicone Coated Meta-Aramid Fabric With Stainless Steel Pressure Retention Rings.
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Spring-Loaded T-bolt Clamps:
    • All stainless steel Spring-Loaded T-bolt clamps.
    • Resists salt water and may be used in marine applications
Part Number Hose and Clamp
Proivded in Kit		 Inside
Diameter		 Outside
Diameter		 Overall Length
Inches		 Convolutes
(Humps)		 Stainless Steel
Rings		 Max Operating
Pressure
PSI
KIT4001D 4070-0001
FLX2588-0406 		4.00"
4.06"		 4.23"
4.38"		 6.00
N/A		 2
N/A		 3
N/A		 70 PSI
N/A
KIT4002D 4070-0002
FLX2588-0406 		4.00"
4.06"		 4.23"
4.38"		 6.00
N/A		 2
N/A		 3
N/A		 70 PSI
N/A
KIT4003D 7727-0001
FLX2588-0406 		4.00"
4.06"		 4.23"
4.38"		 8.00
N/A		 2
N/A		 3
N/A		 50 PSI
N/A
KIT4004D 4073-0001
FLX2588-0356 		3.50"
3.56"		 3.73"
3.88"		 6.00
N/A		 2
N/A		 3
N/A		 70 PSI
N/A
KIT4005D 4074-0001
FLX2588-0306 		3.00"
3.06"		 3.23"
3.38"		 6.00
N/A		 2
N/A		 3
N/A		 70 PSI
N/A
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
