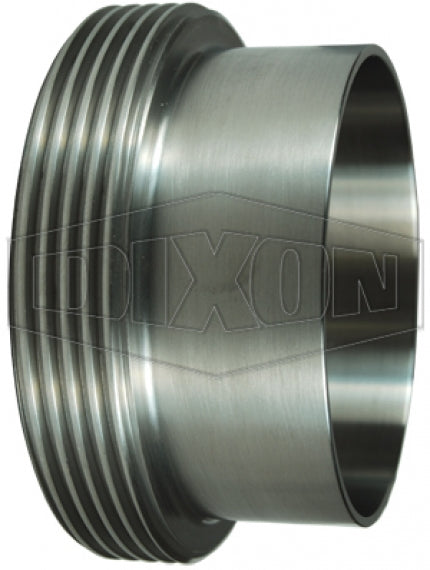

L15AJP-G250 Dixon Valve John Perry Threaded Long Weld Ferrule - 2-1/2" Tube OD - 304 Stainless Steel

L15AJP-G250 Dixon Valve John Perry Threaded Long Weld Ferrule - 2-1/2" Tube OD - 304 Stainless Steel

Save $62.98 Save $62.98
$157.45
$157.45 - $157.45
$157.45
$94.47
$94.47 - $94.47
$94.47

Dixon Sanitary Fittings
John Perry Threaded Long Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: L15AJP-G250 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Construction:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D
- L15AJP-R150 1-1/2" 1.98" 1.50" 1.37" 1.50"
L15AJP-G200 L15AJP-R200 2" 2.53" 1.50" 1.87" 2.00"
L15AJP-G250 L15AJP-R250 2-1/2" 3.06" 1.78" 2.37" 2.50"
L15AJP-G300 L15AJP-R300 3" 3.58" 1.75" 2.87" 3.00"
L15AJP-G400 L15AJP-R400 4" 4.70" 1.75" 3.83" 4.00"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
