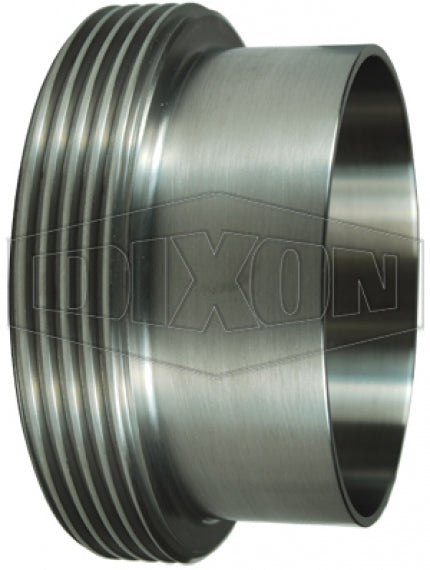

L15AJP-G300 Dixon Valve John Perry Threaded Long Weld Ferrule - 3" Tube OD - 304 Stainless Steel

L15AJP-G300 Dixon Valve John Perry Threaded Long Weld Ferrule - 3" Tube OD - 304 Stainless Steel

Save $86.40 Save $86.40
$216.00
$216.00 - $216.00
$216.00
$129.60
$129.60 - $129.60
$129.60

Dixon Sanitary Fittings
John Perry Threaded Long Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: L15AJP-G300 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Construction:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D
- L15AJP-R150 1-1/2" 1.98" 1.50" 1.37" 1.50"
L15AJP-G200 L15AJP-R200 2" 2.53" 1.50" 1.87" 2.00"
L15AJP-G250 L15AJP-R250 2-1/2" 3.06" 1.78" 2.37" 2.50"
L15AJP-G300 L15AJP-R300 3" 3.58" 1.75" 2.87" 3.00"
L15AJP-G400 L15AJP-R400 4" 4.70" 1.75" 3.83" 4.00"
