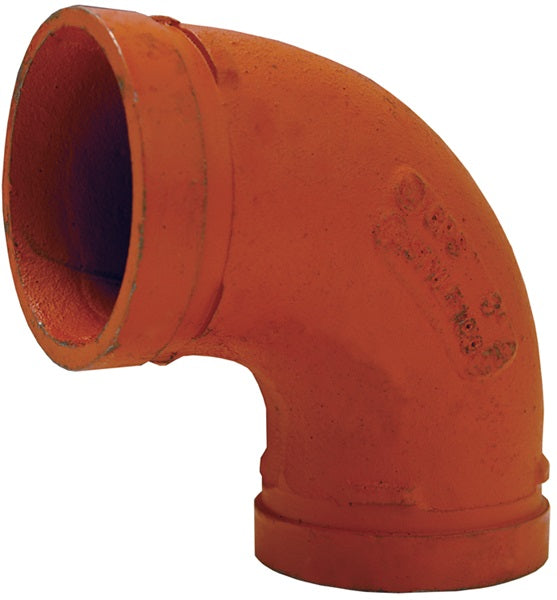

L504 by Dixon Valve | Series-90 | Grooved End Fitting | 90° Elbow | 4" Grooved End x 4" Grooved End | Ductile Iron

L504 by Dixon Valve | Series-90 | Grooved End Fitting | 90° Elbow | 4" Grooved End x 4" Grooved End | Ductile Iron

Save $13.99 Save $13.99
$43.11
$43.11 - $43.11
$43.11
$29.12
$29.12 - $29.12
$29.12

Dixon Valve
Grooved End Fitting | Series-90

Designed to provide minimum pressure drop and uniform strength.
Specifications for Variant SKU: L504 Dixon
Series: Series-90
Shape (Orientation): 90 Degree
Ends Configuration: 4in Grooved End, 4in Grooved End, Some Ends Match
Material(s): Ductile Iron
Comparable to:
  • Victaulic's #10
  • Grinnell's #7050
Material:
  • Ductile iron body with rust inhibiting paint.
Specifications:
  • Maximum operating pressure: 500 PSI at ambient temperature 70°F (21°C).
Approvals:
  • Underwriters Listed
  • Factory Mutual approved
Ductile Iron
Part Number		 Nominal
Size		 Dimensions
C to E
L502 2" 3-1/4"
L5025 2-1/2" 3-3/4"
L503 3" 4-1/4"
L504 4" 5"
L506 6" 6-1/2"
L508 8" 7-3/4"
