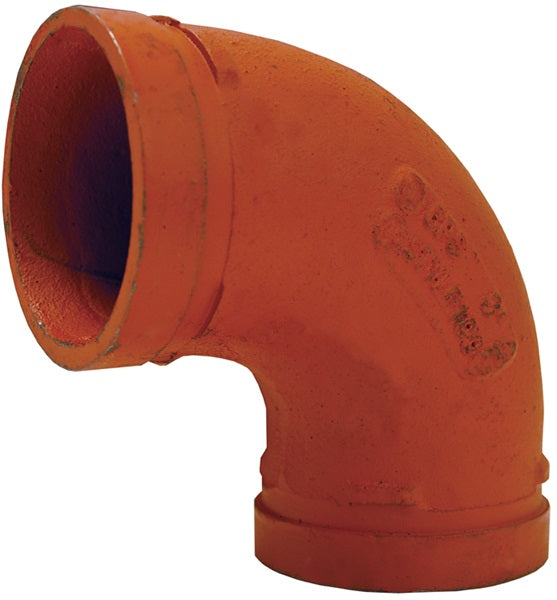

L506 by Dixon Valve | Series-90 | Grooved End Fitting | 90° Elbow | 6" Grooved End x 6" Grooved End | Ductile Iron

Save $44.06

$135.81

$135.81 - $135.81

$135.81

$91.75

$91.75 - $91.75

$91.75

Dixon Valve
Grooved End Fitting | Series-90

Designed to provide minimum pressure drop and uniform strength.

Quantity

Specifications for Variant SKU: L506 Dixon
Series:	Series-90
Shape (Orientation):	90 Degree
Ends Configuration:	6in Grooved End, 6in Grooved End, Some Ends Match
Material(s):	Ductile Iron

Comparable to:
Victaulic's #10 Grinnell's #7050
Material:
Ductile iron body with rust inhibiting paint.
Specifications:
Maximum operating pressure: 500 PSI at ambient temperature 70°F (21°C).
Approvals:
Underwriters Listed Factory Mutual approved


Ductile Iron Part Number	Nominal Size	Dimensions C to E
L502	2"	3-1/4"
L5025	2-1/2"	3-3/4"
L503	3"	4-1/4"
L504	4"	5"
L506	6"	6-1/2"
L508	8"	7-3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
