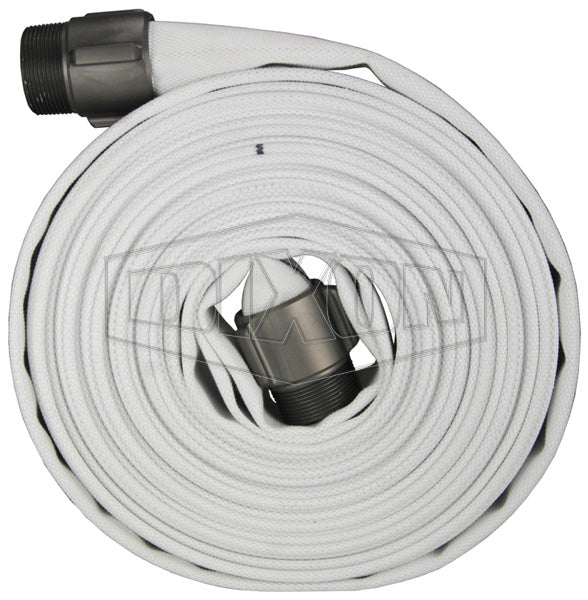

M20-50RAT Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male MNPT Expansion Ring Couplings - Rocker Lug - 2" Hose Size - 2-3/8" Bowl - 50ft Length

M20-50RAT Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male MNPT Expansion Ring Couplings - Rocker Lug - 2" Hose Size - 2-3/8" Bowl - 50ft Length

Save $31.82 Save $31.82
$235.54
$235.54 - $235.54
$235.54
$203.72
$203.72 - $203.72
$203.72

Dixon Fire Fittings
Synthetic Single Jacket Mill Hose - Coupled - Expansion Ring Couplings

Used in open end water discharge applications only, not intended for fire fighting service.
Specifications for Variant SKU: M20-50RAT Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2in
Tubing Construction: PVC
Cover Construction: Polyester Textile Braid
Ends Configuration: 2in Female NPT, 2in Male NPT
Features:
  • Outer construction: single jacket, all polyester
  • Tube construction: black, PVC rubber
  • Rated pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 125 PSI at ambient temperature 70°F (21°C)
Part Number Size Bowl Length Weight
(Lbs.)
Female x Male NPSH Expansion Ring Couplings
M15-50RAS 1-1/2" 1-11/16" 50 ft 8.4900
M15100RAS 1-1/2" 1-11/16" 100 ft 18.0000
M20-50RAS 2" 2-3/8" 50 ft 13.0000
M20100RAS 2" 2-3/8" 100 ft 29.1000
M25-50RAS 2-1/2" 2-11/16" 50 ft 17.1000
M25100RAS 2-1/2" 2-11/16" 100 ft 19.0000
Female x Male NST(NH) Expansion Ring Couplings
M15-50RAF 1-1/2" 1-11/16" 50 ft 11.0000
M15100RAF 1-1/2" 1-11/16" 100 ft 20.2000
M25-25RAF 2-1/2" 2-11/16" 25 ft 11.1500
M25-50RAF 2-1/2" 2-11/16" 50 ft 18.2500
M25100RAF 2-1/2" 2-11/16" 100 ft 35.8400
Female x Male MNPT Expansion Ring Couplings
M15-50RAT 1-1/2" 1-11/16" 50 ft 11.8200
M15100RAT 1-1/2" 1-11/16" 100 ft -
M20-50RAT 2" 2-3/8" 50 ft 16.0000
M20100RAT 2" 2-3/8" 100 ft 27.2000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
