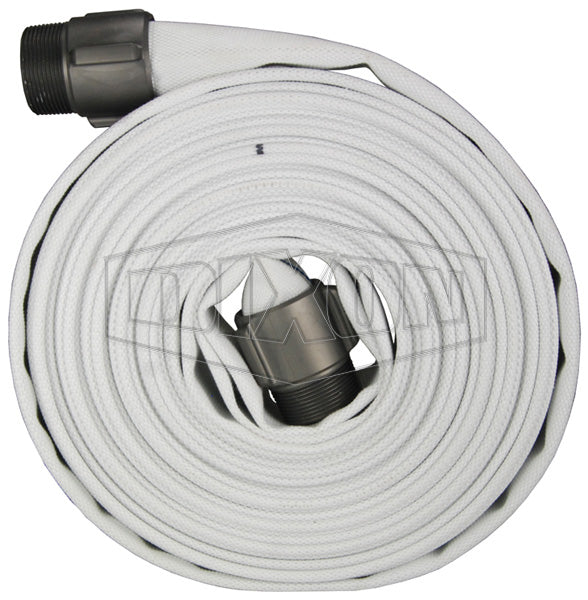

M20100RAT Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male MNPT Expansion Ring Couplings - Rocker Lug - 2" Hose Size - 2-3/8" Bowl - 100ft Length

Name: M20100RAT Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male MNPT Expansion Ring Couplings - Rocker Lug - 2" Hose Size - 2-3/8" Bowl - 100ft Length
Brand: Dixon
SKU: M20100RAT Dixon
Price: 287.76 USD
Availability: InStock

Save $38.37

$326.13

$326.13 - $326.13

$326.13

$287.76

$287.76 - $287.76

$287.76

Dixon Fire Fittings
Synthetic Single Jacket Mill Hose - Coupled - Expansion Ring Couplings

Used in open end water discharge applications only, not intended for fire fighting service.

Quantity

Specifications for Variant SKU: M20100RAT Dixon
Series:	Fire Hose
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Tubing Construction:	PVC
Cover Construction:	Polyester Textile Braid
Ends Configuration:	2in Female NPT, 2in Male NPT

Features:
Outer construction: single jacket, all polyester Tube construction: black, PVC rubber Rated pressure: 250 PSI at ambient temperature 70°F (21°C) Working pressure: 125 PSI at ambient temperature 70°F (21°C)

Part Number	Size	Bowl	Length	Weight (Lbs.)
Female x Male NPSH Expansion Ring Couplings
M15-50RAS	1-1/2"	1-11/16"	50 ft	8.4900
M15100RAS	1-1/2"	1-11/16"	100 ft	18.0000
M20-50RAS	2"	2-3/8"	50 ft	13.0000
M20100RAS	2"	2-3/8"	100 ft	29.1000
M25-50RAS	2-1/2"	2-11/16"	50 ft	17.1000
M25100RAS	2-1/2"	2-11/16"	100 ft	19.0000
Female x Male NST(NH) Expansion Ring Couplings
M15-50RAF	1-1/2"	1-11/16"	50 ft	11.0000
M15100RAF	1-1/2"	1-11/16"	100 ft	20.2000
M25-25RAF	2-1/2"	2-11/16"	25 ft	11.1500
M25-50RAF	2-1/2"	2-11/16"	50 ft	18.2500
M25100RAF	2-1/2"	2-11/16"	100 ft	35.8400
Female x Male MNPT Expansion Ring Couplings
M15-50RAT	1-1/2"	1-11/16"	50 ft	11.8200
M15100RAT	1-1/2"	1-11/16"	100 ft	-
M20-50RAT	2"	2-3/8"	50 ft	16.0000
M20100RAT	2"	2-3/8"	100 ft	27.2000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
