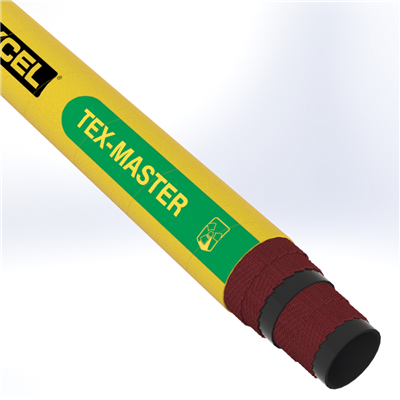

MASTER-2.5-100N by Texcel | TEX-MASTER Series | Heavy-Duty Textile Reinforced Air Hose | 2-1/2" Hose ID | 300 PSI | Yellow

$18.03 - $1,503.14

$18.03

$12.88

$12.88 - $1,073.67

$12.88

Texcel
TEX-MASTER Series | Heavy-Duty Textile Reinforced Air Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: MASTER-2.5-100N Texcel \| 100 \|
Series:	TEX-MASTER Series
Hose Color(s):	Yellow
Internal Diameter:	2.50in
Outer Diameter:	3.19in
Tubing Construction:	Nitrile
Cover Construction:	EPDM/SBR Blend

Technical Data:
Description:	Heavy-duty, multi-purpose, textile reinforced hose for service where a tough and rugged hose is required.	Tube:	Black, Nitrile blend
Cover:	Yellow, EPDM/SBR blend	Reinforcement:	High tensile tire cord plies
Safety Factor:	4:1	Temperature:	-40°F to +220°F
Branding:	TEXCEL® TEX-MASTER - HIGH TENSILE AIR HOSE 300 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Lbs./Ft
MASTER-2.0-100N	2"	2-38/64"	300	1.10 lbs
MASTER-2.5-100N	2-1/2"	3-12/64"	300	1.37 lbs
MASTER-3.0-100N	3"	3-45/64"	300	2.05 lbs
MASTER-4.0-100N	4"	4-46/64"	300	3.23 lbs

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
