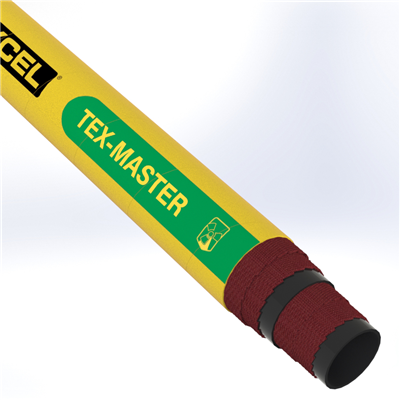

MASTER-3.0-100N by Texcel | TEX-MASTER Series | Heavy-Duty Textile Reinforced Air Hose | 3" Hose ID | 300 PSI | Yellow

$20.78 - $1,730.93

$20.78

$14.84

$14.84 - $1,236.38

$14.84

Texcel
TEX-MASTER Series | Heavy-Duty Textile Reinforced Air Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: MASTER-3.0-100N Texcel \| 100 \|
Series:	TEX-MASTER Series
Hose Color(s):	Yellow
Internal Diameter:	3in
Outer Diameter:	3.70in
Tubing Construction:	Nitrile
Cover Construction:	EPDM/SBR Blend

Technical Data:
Description:	Heavy-duty, multi-purpose, textile reinforced hose for service where a tough and rugged hose is required.	Tube:	Black, Nitrile blend
Cover:	Yellow, EPDM/SBR blend	Reinforcement:	High tensile tire cord plies
Safety Factor:	4:1	Temperature:	-40°F to +220°F
Branding:	TEXCEL® TEX-MASTER - HIGH TENSILE AIR HOSE 300 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Lbs./Ft
MASTER-2.0-100N	2"	2-38/64"	300	1.10 lbs
MASTER-2.5-100N	2-1/2"	3-12/64"	300	1.37 lbs
MASTER-3.0-100N	3"	3-45/64"	300	2.05 lbs
MASTER-4.0-100N	4"	4-46/64"	300	3.23 lbs
