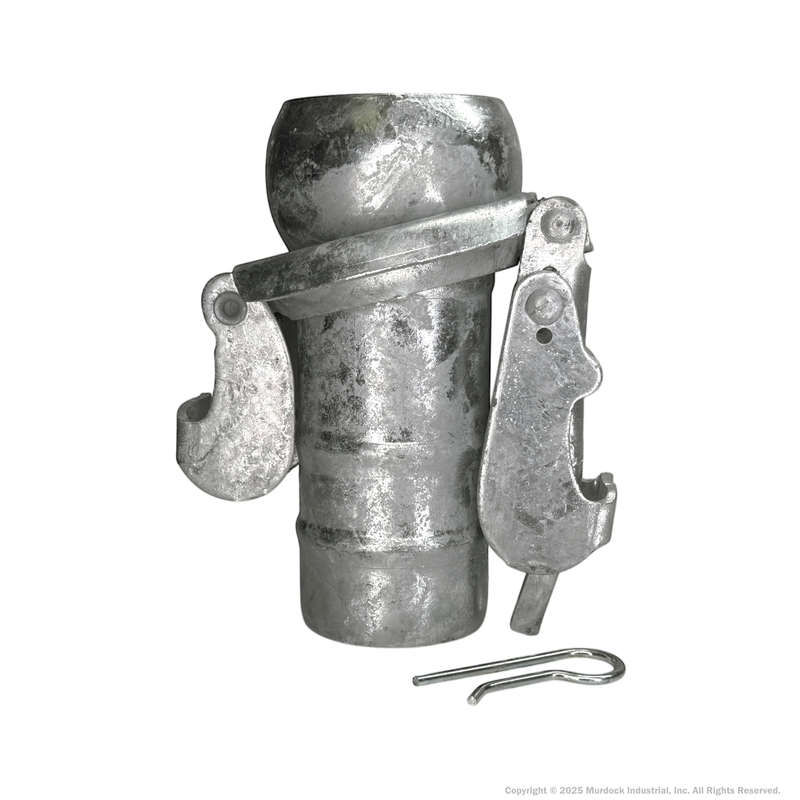

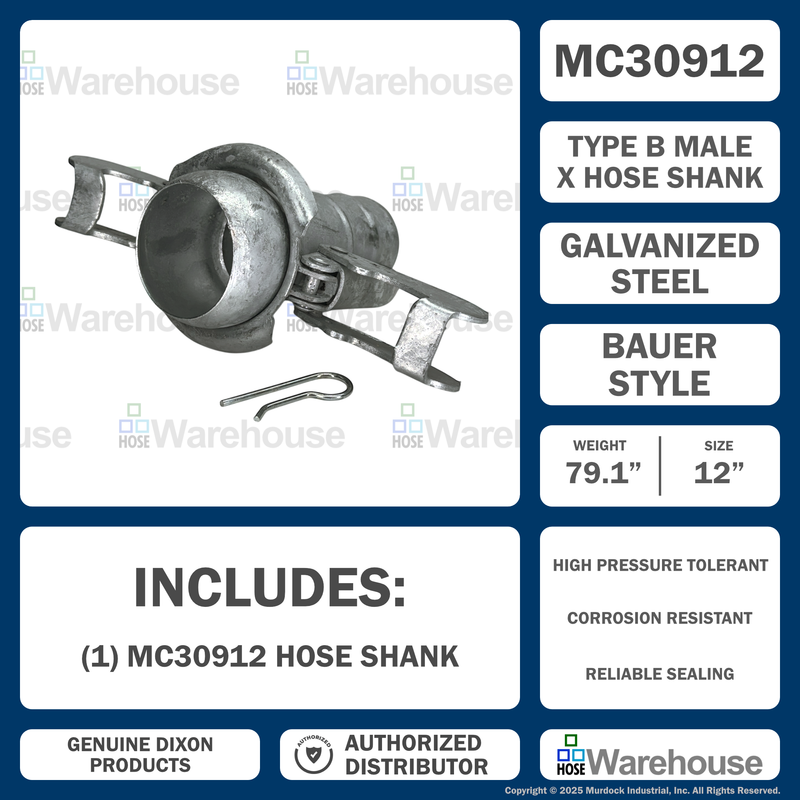

MC30912 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 12" Size | Male with Hose Barb | Galvanized Steel

MC30912 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 12" Size | Male with Hose Barb | Galvanized Steel

Save $72.86 Save $72.86
$655.71
$655.71 - $655.71
$655.71
$582.85
$582.85 - $582.85
$582.85

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Male with Hose Barb

Used primarily on irrigation and suction lines.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MC30912 Dixon
Shape (Orientation): Straight
Ends Configuration: 12in Male Bauer - Type B, 12in Hose Barb
Material(s): Galvanized Steel
Features:
  • Bauer style locks on the male side.
  • Has a double pin locking lever for smooth closing action.
  • Gasket included on female half.
  • Each coupler is equipped with a safety pin to prevent accidental openings.
Materials:
  • Hot dipped, galvanized
Safety Notes:
  • These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
Type B (Bauer-Lock) | Male with Hose Barb
Part Number Description
MC3092 2"
MC3093 3"
MC3094 4"
MC3096 6"
MC3098 8"
MC30910* 10"
MC30912* 12"

*10" and 12" supplied with ACB304 lever assist bar

Type B (Bauer-Lock) | Female with Hose Barb
Part Number Size
FC3102 2"
FC3103 3"
FC3104 4"
FC3106 6"
FC3108 8"
FC31010 10"
FC31012 12"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
