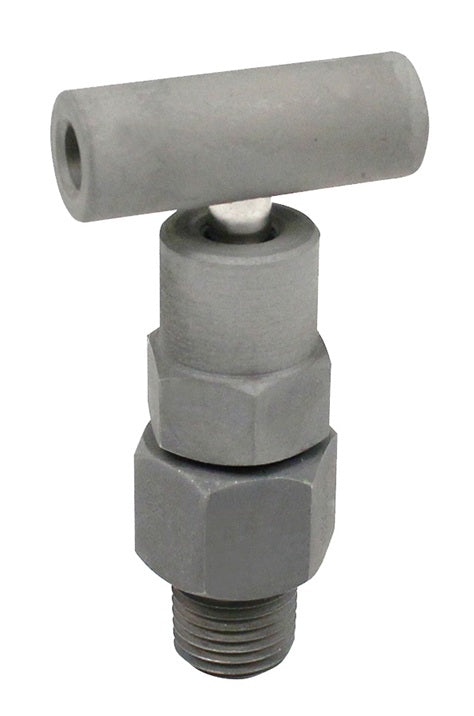

MC802 by Dixon Valve | Bleed Needle Valve | T Design Handle | Hard Seat | 1/4" Male NPT | Zinc Nickel Plated Steel

Save $7.61

$81.57

$81.57 - $81.57

$81.57

$73.96

$73.96 - $73.96

$73.96

Dixon Valve & Coupling
Bleed Needle Valve

Convenient way to relieve process pressures trapped between a shut-off valve and the instrument.

Quantity

Specifications for Variant SKU: MC802 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT
Material(s):	Zinc/Nickel-Plated Steel
Seal Material(s):	FKM

Features:
FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling. Stem threads are rolled for strength and ease of operation. 0.159" bleed port.
Materials:
Non-rotating soft tip stem and a backup metal-to-metal seal. Stems: 316 stainless steel.
Specifications:
Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.

Part Number	Material	NPT Size	Handle Style	PSI @ 200°F
Hard Seat Male NPT
MC802	Zinc Nickel Plated Steel	1/4-18	T Design Handle	10000 PSI
MC804	Zinc Nickel Plated Steel	1/2-14	T Design Handle	10000 PSI
MS802	316 Stainless Steel	1/4-18	T Design Handle	10000 PSI
MS804	316 Stainless Steel	1/2-14	T Design Handle	10000 PSI
Soft Tip Male NPT
MC852	Zinc Nickel Plated Steel	1/4-18	T Design Handle	6000 PSI
MC854	Zinc Nickel Plated Steel	1/2-14	T Design Handle	6000 PSI
MS852	316 Stainless Steel	1/4-18	T Design Handle	6000 PSI
MS854	316 Stainless Steel	1/2-14	T Design Handle	6000 PSI
