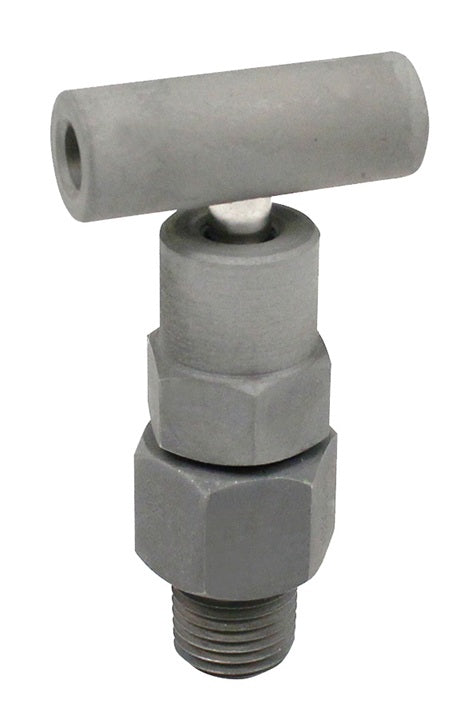

MC804 by Dixon Valve | Bleed Needle Valve | T Design Handle | Hard Seat | 1/2" Male NPT | Zinc Nickel Plated Steel

Save $8.92

$80.25

$80.25 - $80.25

$80.25

$71.33

$71.33 - $71.33

$71.33

Dixon Valve & Coupling
Bleed Needle Valve

Convenient way to relieve process pressures trapped between a shut-off valve and the instrument.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MC804 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT
Material(s):	Zinc/Nickel-Plated Steel
Seal Material(s):	FKM

Features:
FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling. Stem threads are rolled for strength and ease of operation. 0.159" bleed port.
Materials:
Non-rotating soft tip stem and a backup metal-to-metal seal. Stems: 316 stainless steel.
Specifications:
Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.

Part Number	Material	NPT Size	Handle Style	PSI @ 200°F
Hard Seat Male NPT
MC802	Zinc Nickel Plated Steel	1/4-18	T Design Handle	10000 PSI
MC804	Zinc Nickel Plated Steel	1/2-14	T Design Handle	10000 PSI
MS802	316 Stainless Steel	1/4-18	T Design Handle	10000 PSI
MS804	316 Stainless Steel	1/2-14	T Design Handle	10000 PSI
Soft Tip Male NPT
MC852	Zinc Nickel Plated Steel	1/4-18	T Design Handle	6000 PSI
MC854	Zinc Nickel Plated Steel	1/2-14	T Design Handle	6000 PSI
MS852	316 Stainless Steel	1/4-18	T Design Handle	6000 PSI
MS854	316 Stainless Steel	1/2-14	T Design Handle	6000 PSI
