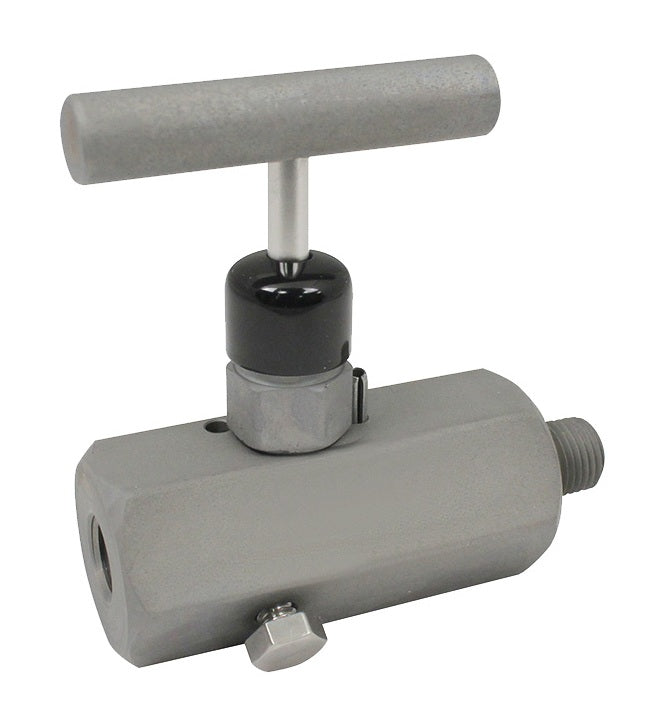

MFC702 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/4" Male NPT x 1/4" Female NPT | Zinc Nickel Plated Steel

Save $9.60

$102.84

$102.84 - $102.84

$102.84

$93.24

$93.24 - $93.24

$93.24

Dixon Valve & Coupling
Block and Bleed Needle Valves

Allows pressure to be bled off without disturbing the permanent piping installation allowing quick and easy removal or replacement of instruments.

Quantity

Specifications for Variant SKU: MFC702 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Female NPT
Material(s):	Zinc/Nickel-Plated Steel
Seal Material(s):	FKM

Features:
FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling. Stem threads are rolled for strength and ease of operation. 0.090" bleed hole located on bottom is controlled by a 1/4"-20 UNF-2A bleed screw.
Materials:
Stems: 316 stainless steel
Specifications:
Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI. Orifice size is 0.187", flow coefficient: 0.44.

Part Number	Material	NPT Size	Handle Style	PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC602	Zinc Nickel Plated Steel	1/4-18	T Design Handle	10000 PSI
MFC604	Zinc Nickel Plated Steel	1/2-14	T Design Handle	10000 PSI
MFS602	316 Stainless Steel	1/4-18	T Design Handle	10000 PSI
MFS604	316 Stainless Steel	1/2-14	T Design Handle	10000 PSI
Soft Seat Male NPT to Female NPT
MFC702	Zinc Nickel Plated Steel	1/4-18	T Design Handle	6000 PSI
MFC704	Zinc Nickel Plated Steel	1/2-14	T Design Handle	6000 PSI
MFS702	316 Stainless Steel	1/4-18	T Design Handle	6000 PSI
MFS704	316 Stainless Steel	1/2-14	T Design Handle	6000 PSI
