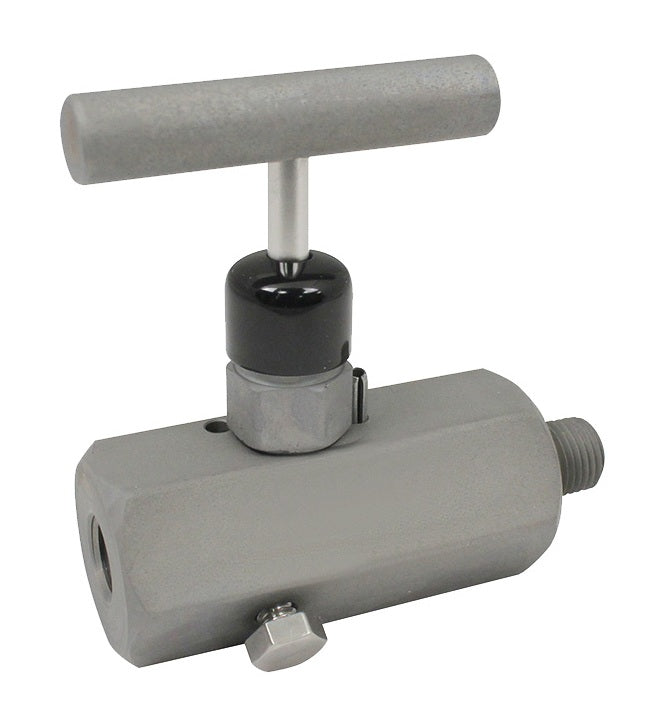

MFC704 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | Zinc Nickel Plated Steel

MFC704 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | Zinc Nickel Plated Steel

Save $10.31 Save $10.31
$110.44
$110.44 - $110.44
$110.44
$100.13
$100.13 - $100.13
$100.13

Dixon Valve & Coupling
Block and Bleed Needle Valves

Allows pressure to be bled off without disturbing the permanent piping installation allowing quick and easy removal or replacement of instruments.
Specifications for Variant SKU: MFC704 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Female NPT
Material(s): Zinc/Nickel-Plated Steel
Seal Material(s): FKM
Features:
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
  • 0.090" bleed hole located on bottom is controlled by a 1/4"-20 UNF-2A bleed screw.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • Orifice size is 0.187", flow coefficient: 0.44.
Part Number Material NPT Size Handle Style PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC602 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
MFC604 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFS602 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
MFS604 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
Soft Seat Male NPT to Female NPT
MFC702 Zinc Nickel Plated Steel 1/4-18 T Design Handle 6000 PSI
MFC704 Zinc Nickel Plated Steel 1/2-14 T Design Handle 6000 PSI
MFS702 316 Stainless Steel 1/4-18 T Design Handle 6000 PSI
MFS704 316 Stainless Steel 1/2-14 T Design Handle 6000 PSI
