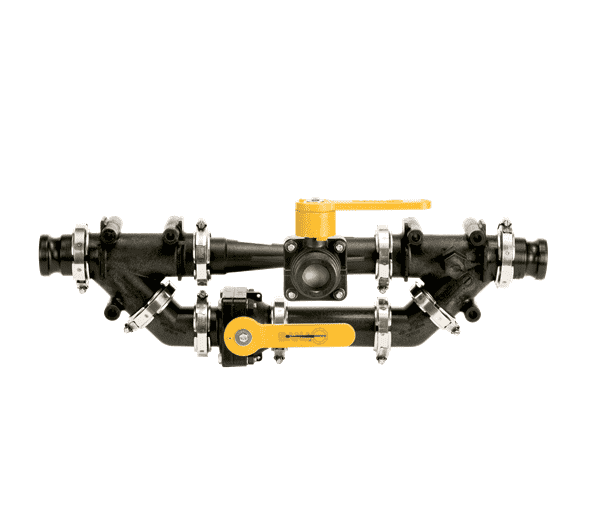

MIS220AA Banjo Full Port Inductor Assembly - Part A - 2" Male Adapter x 2" Male Adapter

MIS220AA by Banjo | Manifold Flange Connections for Full Port Inductor Assembly | Part A | 2" Male Adapter x 2" Male Adapter

Save $304.70 Save $304.70
$761.75
$761.75 - $761.75
$761.75
$457.05
$457.05 - $457.05
$457.05

Banjo Manifold Flange Connections - Manifold Inductor Systems - Full Port Inductor Assembly - Part A - 2" Male Adapter x 2" Male Adapter
Specifications for Variant SKU: MIS220AA Banjo
Shape (Orientation): Tee
Material(s): Polypropylene
Features:
  • 2" & 3" full port flow by-pass.
  • Easy assembly/installation with manifold connections.
  • Installed after pump; suction completely empties inductor tank.
  • Keeps tank free of chemicals.

Part Number Description
MIS220AA Full Port Inductor Assembly - Part A - 2" Male Adapter x 2" Male Adapter
MIS220AAK Full Port Inductor Assembly Kit - Part A - 2" Male Adapter x 2" Male Adapter

Replacement Parts
Item Description Part Number Quantity Needed per Assembly
1 3/4" Poly Pipe Plug PLUG075 1
2 2" Full Port Manifold Inductor MHV220A 1
Not Shown 220 Series Full Port Manifold EPDM Gasket With Rib M221G 10
4 220 Series Worm Screw Clamp FC220 10
5 2" X 2" Full Port 45° Flange M220CPG45 2
6 2" X 2" Full Port Flange X 6" Long M220CPG6 1
7 2" Full Port 45° Y Flange M220Y45 1
8 2" Full Port 45° Y Flange with 3/4" Gauge Port M220YG45 1
9 2" Full Port Manifold Valve Flange X Flange With FKM Seals MVS220CF 1
10 2" Full Port Flange X 2" Male Adapter M220A 2
11 2" Full Port Manifold Valve Flange X Male NPT With FKM Seals MVSMT220FP 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
