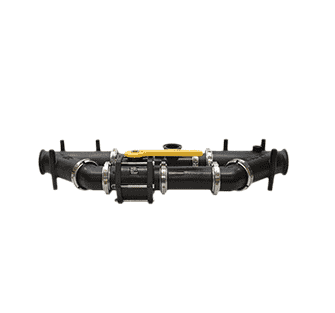

MIS300 Banjo Manifold Inductor System - 3" Flange x 3" Flange - Assembled

MIS300 by Banjo | Manifold Flange Connections for Manifold Inductor System | Full Port | 3" Flange x 3" Flange | Assembled | 150 PSI

Save $467.27

$1,168.18

$1,168.18 - $1,168.18

$1,168.18

$700.91

$700.91 - $700.91

$700.91

Banjo Manifold Flange Connections - Manifold Inductor Systems

Quantity

Specifications for Variant SKU: MIS300 Banjo
Shape (Orientation):	Multi-Directional
Ends Configuration:	3in Standard Port Manifold Flange, 3in Standard Port Manifold Flange, Some Ends Match
Material(s):	Polypropylene

Applications:
Fluids Draws wettable powders or liquids from inductor tank for thorough chemical mixing!
Features:
Installed after pump; suction completely empties inductor tank. Keeps tank free of chemicals. 2" & 3" full port flow Easy assembly/installation with manifold connections.

Part Number	Description	End Type	Max PSI
MIS220	Assembled, Full Port	2" Flange x 2" Flange	225 PSI
MIS300	Assembled, Full Port	3" Flange x 3" Flange	150 PSI

Replacement Parts for MIS220
Item	Part Number	Description	Quantity Required
1	FC220	220 Series Worm Screw Clamp	10
2	MVS220CF	2" FP Flange x 2" FP Flange	1
3	M220CPG6	2" x 2" Full Port Flange x 6"	1
4	M220YG45	2" Full Port 45° Y Flange w/ 3/4" gauge port*	1
5	M220Y45	2" Full Port 45° Y Flange	1
6	M220CPG45	2" Full Port 45° Coupling	2
7	PLUG075	3/4" Pipe Plug	1
8	MHV220A	2" Full Port MPT Poly Venturi	1
Not Shown	M221G	2" Full Port EPDM Manifold Gasket with Rib	7

* Gauge not included

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
