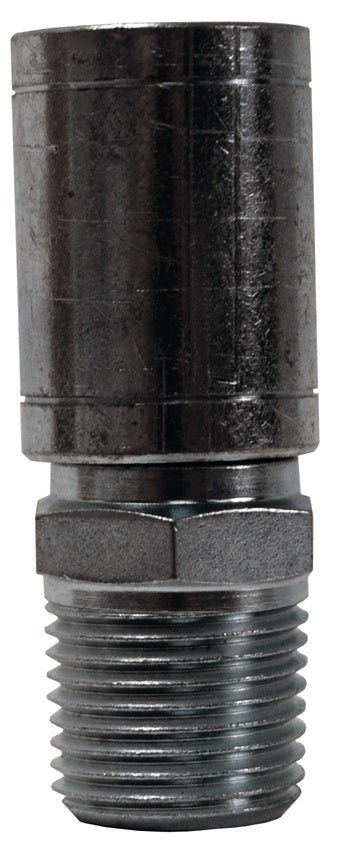

MPC-T24 by Dixon Valve | True I.D. PTFE Hose Fitting | 1-1/2" Male Pipe Rigid | Carbon Steel

MPC-T24 by Dixon Valve | True I.D. PTFE Hose Fitting | 1-1/2" Male Pipe Rigid | Carbon Steel

Save $3.99 Save $3.99
$44.76
$44.76 - $44.76
$44.76
$40.77
$40.77 - $40.77
$40.77

Dixon Valve
True I.D. PTFE Hose Fitting | Male Pipe Rigid

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.
Specifications for Variant SKU: MPC-T24 Dixon
Series: MPC-T Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Reusable Hose End
Material(s): Carbon Steel
Compatible with the following Series: WOC-T Series  |   BOC-T Series  |   WTB-T Series
Use:
  • For use with True I.D. PTFE hoses.
Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size Crimp Collars for Convoluted Hose Crimp Collars for Smooth Bore Hose
Carbon Steel 304 Stainless Steel Carbon Steel 304 Stainless Steel
MPC-T04 MPR-T04 1/4" CSC-T04-1 SSC-T04-1 CSC-T04-2 SSC-T04-2
- MPR-T06 3/8" CSC-T06-1 SSC-T06-1 CSC-T06-2 SSC-T06-2
MPC-T08 MPR-T08 1/2" CSC-T08-1 SSC-T08-1 CSC-T08-2 SSC-T08-2
MPC-T12 MPR-T12 3/4" CSC-T12-1 SSC-T12-1 CSC-T12-2 SSC-T12-2
MPC-T16 MPR-T16 1" CSC-T16-1 SSC-T16-1 CSC-T16-2 SSC-T16-2
MPC-T20 MPR-T20 1-1/4" CSC-T20-1 SSC-T20-1 - -
MPC-T24 MPR-T24 1-1/2" CSC-T24-1 SSC-T24-1 - -
MPC-T32 MPR-T32 2" CSC-T32-1 SSC-T32-1 - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
