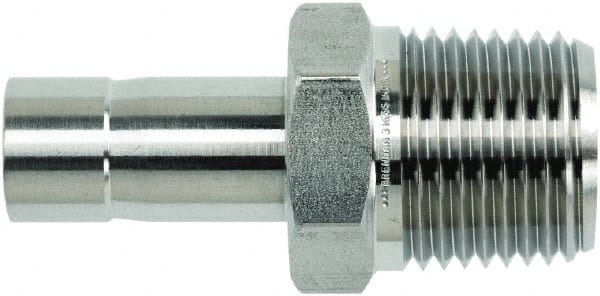

N2428-06-04-SS by Brennan Inc. | -06 Stand Pipe x -04 Male NPT | Straight | Stainless Steel

N2428-06-04-SS by Brennan Inc. | -06 Stand Pipe x -04 Male NPT | Straight | Stainless Steel

Save $1.76 Save $1.76
$15.87
$15.87 - $15.87
$15.87
$14.11
$14.11 - $14.11
$14.11

Brennan Inc.
Double Ferrule Tube Fittings: N2428 - Stand Pipe x Male NPT Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2428-06-04-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material P NPT Male T Tube OD A B E Min. F A/F
N2428-04-02-B Brass 1/8" 1/4" 31.8mm 9.6mm 4.8mm 11.0mm
N2428-04-04-B Brass 1/4" 1/4" 37.0mm 14.3mm 4.8mm 14.0mm
N2428-06-04-B Brass 1/4" 3/8" 38.9mm 14.3mm 7.1mm 14.0mm
N2428-08-08-B Brass 1/2" 1/2" 50.8mm 19.1mm 9.9mm 22.0mm

N2428-02-02-SS Stainless Steel 1/8" 1/8" 29.5mm 9.6mm 4.8mm 11mm
N2428-02-04-SS Stainless Steel 1/4" 1/8" 34.8mm 14.4mm 7.1mm 14mm
N2428-04-02-SS Stainless Steel 1/8" 1/4" 31.8mm 9.6mm 4.8mm 11mm
N2428-04-04-SS Stainless Steel 1/4" 1/4" 37.0mm 14.3mm 4.8mm 14mm
N2428-04-06-SS Stainless Steel 3/8" 1/4" 37.8mm 14.3mm 4.8mm 19mm
N2428-04-08-SS Stainless Steel 1/2" 1/4" 43.4mm 19.1mm 4.8mm 22mm
N2428-05-04-SS Stainless Steel 1/4" 5/16" 38.1mm 14.3mm 6.3mm 14mm
N2428-06-04-SS Stainless Steel 1/4" 3/8" 38.9mm 14.3mm 7.1mm 14mm
N2428-06-06-SS Stainless Steel 3/8" 3/8" 39.6mm 14.3mm 7.1mm 19mm
N2428-06-08-SS Stainless Steel 1/2" 3/8" 45.2mm 19.1mm 7.1mm 22mm
N2428-08-04-SS Stainless Steel 1/4" 1/2" 44.5mm 14.3mm 7.1mm 14mm
N2428-08-06-SS Stainless Steel 3/8" 1/2" 45.2mm 14.3mm 9.9mm 19mm
N2428-08-08-SS Stainless Steel 1/2" 1/2" 50.8mm 19.1mm 9.9mm 22mm
N2428-10-08-SS Stainless Steel 1/2" 5/8" 52.3mm 19.1mm 11.9mm 22mm
N2428-12-08-SS Stainless Steel 1/2" 3/4" 52.3mm 19.1mm 11.9mm 22mm
N2428-12-12-SS Stainless Steel 3/4" 3/4" 52.3mm 19.1mm 15.0mm 27.0mm
N2428-16-12-SS Stainless Steel 3/4" 1" 58.7mm 19.1mm 15.7mm 27mm
N2428-16-16-SS Stainless Steel 1" 1" 66.0mm 23.8mm 20.3mm 35mm
