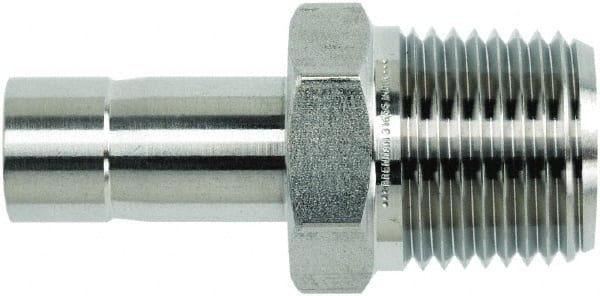

N2428-08-06-SS by Brennan Inc. | -08 Stand Pipe x -06 Male NPT | Straight | Stainless Steel

N2428-08-06-SS by Brennan Inc. | -08 Stand Pipe x -06 Male NPT | Straight | Stainless Steel

$25.07 - $25.07
$25.07
$27.57
$27.57 - $27.57
$27.57

Brennan Inc.
Double Ferrule Tube Fittings: N2428 - Stand Pipe x Male NPT Straight
Specifications for Variant SKU: N2428-08-06-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Stem, 3/8in Male NPT
Material(s): Stainless Steel
Part Number Material P NPT Male T Tube OD A B E Min. F A/F
N2428-04-02-B Brass 1/8" 1/4" 31.8mm 9.6mm 4.8mm 11.0mm
N2428-04-04-B Brass 1/4" 1/4" 37.0mm 14.3mm 4.8mm 14.0mm
N2428-06-04-B Brass 1/4" 3/8" 38.9mm 14.3mm 7.1mm 14.0mm
N2428-08-08-B Brass 1/2" 1/2" 50.8mm 19.1mm 9.9mm 22.0mm

N2428-02-02-SS Stainless Steel 1/8" 1/8" 29.5mm 9.6mm 4.8mm 11mm
N2428-02-04-SS Stainless Steel 1/4" 1/8" 34.8mm 14.4mm 7.1mm 14mm
N2428-04-02-SS Stainless Steel 1/8" 1/4" 31.8mm 9.6mm 4.8mm 11mm
N2428-04-04-SS Stainless Steel 1/4" 1/4" 37.0mm 14.3mm 4.8mm 14mm
N2428-04-06-SS Stainless Steel 3/8" 1/4" 37.8mm 14.3mm 4.8mm 19mm
N2428-04-08-SS Stainless Steel 1/2" 1/4" 43.4mm 19.1mm 4.8mm 22mm
N2428-05-04-SS Stainless Steel 1/4" 5/16" 38.1mm 14.3mm 6.3mm 14mm
N2428-06-04-SS Stainless Steel 1/4" 3/8" 38.9mm 14.3mm 7.1mm 14mm
N2428-06-06-SS Stainless Steel 3/8" 3/8" 39.6mm 14.3mm 7.1mm 19mm
N2428-06-08-SS Stainless Steel 1/2" 3/8" 45.2mm 19.1mm 7.1mm 22mm
N2428-08-04-SS Stainless Steel 1/4" 1/2" 44.5mm 14.3mm 7.1mm 14mm
N2428-08-06-SS Stainless Steel 3/8" 1/2" 45.2mm 14.3mm 9.9mm 19mm
N2428-08-08-SS Stainless Steel 1/2" 1/2" 50.8mm 19.1mm 9.9mm 22mm
N2428-10-08-SS Stainless Steel 1/2" 5/8" 52.3mm 19.1mm 11.9mm 22mm
N2428-12-08-SS Stainless Steel 1/2" 3/4" 52.3mm 19.1mm 11.9mm 22mm
N2428-12-12-SS Stainless Steel 3/4" 3/4" 52.3mm 19.1mm 15.0mm 27.0mm
N2428-16-12-SS Stainless Steel 3/4" 1" 58.7mm 19.1mm 15.7mm 27mm
N2428-16-16-SS Stainless Steel 1" 1" 66.0mm 23.8mm 20.3mm 35mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
