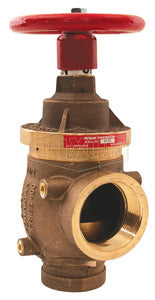

NAPRAVGFT250-95 Dixon Cast Brass Factory Set Pressure Reducing (Regulating) Angle Valve - 2-1/2" Grooved Inlet x 2-1/2" Female NPT Outlet

NAPRAVGFT250-95 Dixon Cast Brass Factory Set Pressure Reducing (Regulating) Angle Valve - 2-1/2" Grooved Inlet x 2-1/2" Female NPT Outlet - Calculated Setting: 95

Save $499.26 Save $499.26
$1,248.15
$1,248.15 - $1,248.15
$1,248.15
$748.89
$748.89 - $748.89
$748.89

Dixon Fire Fittings
Factory Set Pressure Reducing (Regulating) Valves

True combination shut-off and pressure reducing valve.
Specifications for Variant SKU: NAPRAVGFT250-95 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Grooved End, 2-1/2in Female NPT
Material(s): Brass
Features:
  • 2-1/2" size reduces inlet pressures of 400 PSI (2758 kPa) or less to desired working pressures from 20 through 175 PSI (138-1207 kPa) under discharge or static conditions.
  • Globe Female x Female valves are furnished with OPEN / CLOSED Indicator Bonnet for rapid confirmation of the valves status in the system.
  • (4) drilled and tapped bosses:
    • Two on each side for upstream and downstream pressure monitoring.
    • Saves installation time and provides a cleaner appearance.
  • Tamper resistant.
Specifications:
  • UL listed for Automatic Sprinkler Systems as floor or zone control valve
  • Standpipe Systems, Class I, II and III
  • Automatic Check Valve for Dual Riser Systems
  • Approved by the New York City Board of Standards and Appeals, approval # MEA 54-07-E
  • Approved by the City of Los Angeles and the City of San Francisco (ULC 2-1/2")
Part Number Inlet Outlet Calculated
Setting		 Weight
(Lbs.)
Angle Grooved x Grooved
NAPRAVGT250-55 2-1/2" Grooved 2-1/2" Grooved 55 19.6000
NAPRAVGT250-60 2-1/2" Grooved 2-1/2" Grooved 60 19.8000
NAPRAVGT250-65 2-1/2" Grooved 2-1/2" Grooved 65 20.2000
NAPRAVGT250-70 2-1/2" Grooved 2-1/2" Grooved 70 -
NAPRAVGT250-75 2-1/2" Grooved 2-1/2" Grooved 75 -
NAPRAVGT250-80 2-1/2" Grooved 2-1/2" Grooved 80 -
NAPRAVGT250-85 2-1/2" Grooved 2-1/2" Grooved 85 20.2000
NAPRAVGT250-95 2-1/2" Grooved 2-1/2" Grooved 95 -
Angle Grooved x Female
NAPRAVGFT250-55 2-1/2" Grooved 2-1/2" Female NPT 55 -
NAPRAVGFT250-60 2-1/2" Grooved 2-1/2" Female NPT 60 -
NAPRAVGFT250-65 2-1/2" Grooved 2-1/2" Female NPT 65 -
NAPRAVGFT250-70 2-1/2" Grooved 2-1/2" Female NPT 70 -
NAPRAVGFT250-75 2-1/2" Grooved 2-1/2" Female NPT 75 -
NAPRAVGFT250-80 2-1/2" Grooved 2-1/2" Female NPT 80 -
NAPRAVGFT250-85 2-1/2" Grooved 2-1/2" Female NPT 85 -
NAPRAVGFT250-95 2-1/2" Grooved 2-1/2" Female NPT 95 -
Globe Female x Female
NAPRVFT250-55 2-1/2" Female NPT 2-1/2" Female NPT 55 26.4400
NAPRVFT250-60 2-1/2" Female NPT 2-1/2" Female NPT 60 -
NAPRVFT250-65 2-1/2" Female NPT 2-1/2" Female NPT 65 -
NAPRVFT250-70 2-1/2" Female NPT 2-1/2" Female NPT 70 -
NAPRVFT250-75 2-1/2" Female NPT 2-1/2" Female NPT 75 -
NAPRVFT250-80 2-1/2" Female NPT 2-1/2" Female NPT 80 -
NAPRVFT250-85 2-1/2" Female NPT 2-1/2" Female NPT 85 -
