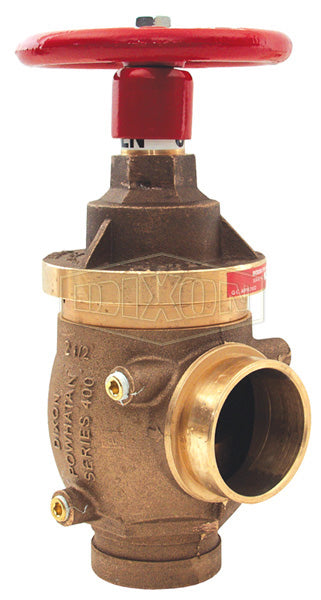

NAPRAVGT250-70 Dixon Cast Brass Factory Set Pressure Reducing (Regulating) Angle Valve - 2-1/2" Grooved Inlet x 2-1/2" Grooved Outlet

NAPRAVGT250-70 Dixon Cast Brass Factory Set Pressure Reducing (Regulating) Angle Valve - 2-1/2" Grooved Inlet x 2-1/2" Grooved Outlet - Calculated Setting: 70

Save $62.27 Save $62.27
$684.18
$684.18 - $684.18
$684.18
$621.91
$621.91 - $621.91
$621.91

Dixon Fire Fittings
Factory Set Pressure Reducing (Regulating) Valves

True combination shut-off and pressure reducing valve.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NAPRAVGT250-70 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Grooved End, 2-1/2in Grooved End, Some Ends Match
Material(s): Brass
Features:
  • 2-1/2" size reduces inlet pressures of 400 PSI (2758 kPa) or less to desired working pressures from 20 through 175 PSI (138-1207 kPa) under discharge or static conditions.
  • Globe Female x Female valves are furnished with OPEN / CLOSED Indicator Bonnet for rapid confirmation of the valves status in the system.
  • (4) drilled and tapped bosses:
    • Two on each side for upstream and downstream pressure monitoring.
    • Saves installation time and provides a cleaner appearance.
  • Tamper resistant.
Specifications:
  • UL listed for Automatic Sprinkler Systems as floor or zone control valve
  • Standpipe Systems, Class I, II and III
  • Automatic Check Valve for Dual Riser Systems
  • Approved by the New York City Board of Standards and Appeals, approval # MEA 54-07-E
  • Approved by the City of Los Angeles and the City of San Francisco (ULC 2-1/2")
Part Number Inlet Outlet Calculated
Setting		 Weight
(Lbs.)
Angle Grooved x Grooved
NAPRAVGT250-55 2-1/2" Grooved 2-1/2" Grooved 55 19.6000
NAPRAVGT250-60 2-1/2" Grooved 2-1/2" Grooved 60 19.8000
NAPRAVGT250-65 2-1/2" Grooved 2-1/2" Grooved 65 20.2000
NAPRAVGT250-70 2-1/2" Grooved 2-1/2" Grooved 70 -
NAPRAVGT250-75 2-1/2" Grooved 2-1/2" Grooved 75 -
NAPRAVGT250-80 2-1/2" Grooved 2-1/2" Grooved 80 -
NAPRAVGT250-85 2-1/2" Grooved 2-1/2" Grooved 85 20.2000
NAPRAVGT250-95 2-1/2" Grooved 2-1/2" Grooved 95 -
Angle Grooved x Female
NAPRAVGFT250-55 2-1/2" Grooved 2-1/2" Female NPT 55 -
NAPRAVGFT250-60 2-1/2" Grooved 2-1/2" Female NPT 60 -
NAPRAVGFT250-65 2-1/2" Grooved 2-1/2" Female NPT 65 -
NAPRAVGFT250-70 2-1/2" Grooved 2-1/2" Female NPT 70 -
NAPRAVGFT250-75 2-1/2" Grooved 2-1/2" Female NPT 75 -
NAPRAVGFT250-80 2-1/2" Grooved 2-1/2" Female NPT 80 -
NAPRAVGFT250-85 2-1/2" Grooved 2-1/2" Female NPT 85 -
NAPRAVGFT250-95 2-1/2" Grooved 2-1/2" Female NPT 95 -
Globe Female x Female
NAPRVFT250-55 2-1/2" Female NPT 2-1/2" Female NPT 55 26.4400
NAPRVFT250-60 2-1/2" Female NPT 2-1/2" Female NPT 60 -
NAPRVFT250-65 2-1/2" Female NPT 2-1/2" Female NPT 65 -
NAPRVFT250-70 2-1/2" Female NPT 2-1/2" Female NPT 70 -
NAPRVFT250-75 2-1/2" Female NPT 2-1/2" Female NPT 75 -
NAPRVFT250-80 2-1/2" Female NPT 2-1/2" Female NPT 80 -
NAPRVFT250-85 2-1/2" Female NPT 2-1/2" Female NPT 85 -
