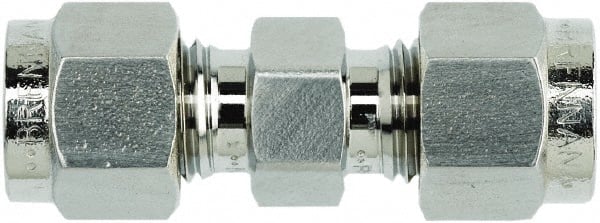

NS2403-04-02-SS by Brennan Inc. | -04 Instrumentation Fitting x -02 Instrumentation Fitting Single Ferrule | Straight | Stainless Steel

NS2403-04-02-SS by Brennan Inc. | -04 Instrumentation Fitting x -02 Instrumentation Fitting Single Ferrule | Straight | Stainless Steel

Save $13.68 Save $13.68
$34.20
$34.20 - $34.20
$34.20
$20.52
$20.52 - $20.52
$20.52

Brennan Inc.
Single Ferrule Tube Fittings: NS2403 - Instrumentation Fitting x Instrumentation Fitting (Single Ferrule) Straight
Specifications for Variant SKU: NS2403-04-02-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression , 1/8in Tube Compression, Some Ends Match
Material(s): Stainless Steel
Part Number Material T Tube OD TX Tube OD A
mm		 C
mm		 CX
mm		 D
mm		 DX
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 GX A/F
mm		 H
mm
NS2403-02-02-SS Stainless Steel 1/8" - 35.6mm 15.3mm - 12.7mm - 2.4mm 11mm 11mm - 22.4mm
NS2403-04-02-SS Stainless Steel 1/4" 1/8" 38.6mm 17.8mm 15.3mm 15.3mm 12.7mm 2.4mm 14mm 14mm 11mm 24.6mm
NS2403-04-04-SS Stainless Steel 1/4" - 40.9mm 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 26.2mm
NS2403-06-02-SS Stainless Steel 3/8" 1/8" 40.9mm 19.3mm 15.3mm 16.8mm 12.7mm 2.4mm 16mm 17mm 11mm 26.9mm
NS2403-06-04-SS Stainless Steel 3/8" 1/4" 43.2mm 19.3mm 17.8mm 16.8mm 15.3mm 4.8mm 16mm 17mm 14mm 28.5mm
NS2403-06-06-SS Stainless Steel 3/8" - 45.0mm 19.3mm - 16.8mm - 7.1mm 16mm 17mm - 30.2mm
NS2403-08-06-SS Stainless Steel 1/2" 3/8" 48.5mm 21.8mm 19.3mm 22.9mm 16.8mm 7.1mm 22mm 22mm 17mm 31.0mm
NS2403-08-08-SS Stainless Steel 1/2" - 51.3mm 21.8mm - 22.9mm - 10.4mm 22mm 22mm - 31.0mm
NS2403-12-08-SS Stainless Steel 3/4" 1/2" 53.6mm 21.8mm 21.8mm 24.4mm 22.9mm 10.4mm 27mm 28.5mm 22mm 33.3mm
NS2403-12-10-SS Stainless Steel - - - - - - - - - - - -
NS2403-12-12-SS Stainless Steel 3/4" - 53.6mm 21.8mm - 24.4mm - 15.8mm 27mm 28.5mm - 33.3mm
NS2403-16-16-SS Stainless Steel 1" - 64.8mm 26.4mm - 31.2mm - 22.3mm 35mm 38mm - 40.4mm
NS2403-20-20-SS Stainless Steel 1-1/4" - 92.2mm 38.9mm - 41.2mm - 27.6mm 46mm 50mm - 48.0mm

NS2403-04-04-B Brass 1/4" - 40.9mm 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 26.2mm
NS2403-06-04-B Brass 3/8" 1/4" 43.2mm 19.3mm 17.8mm 16.8mm 15.3mm 4.8mm 16mm 17mm 14mm 28.5mm
NS2403-06-06-B Brass 3/8" - 45.0mm 19.3mm - 16.8mm - 7.1mm 16mm 17mm - 30.2mm
NS2403-08-08-B Brass 1/2" - 51.3mm 21.8mm - 22.9mm - 10.4mm 22mm 22mm - 31.0mm
