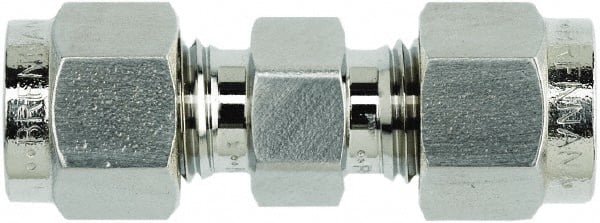

NS2403-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Instrumentation Fitting Single Ferrule | Straight | Stainless Steel

NS2403-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Instrumentation Fitting Single Ferrule | Straight | Stainless Steel

Save $6.16 Save $6.16
$55.41
$55.41 - $55.41
$55.41
$49.25
$49.25 - $49.25
$49.25

Brennan Inc.
Single Ferrule Tube Fittings: NS2403 - Instrumentation Fitting x Instrumentation Fitting (Single Ferrule) Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NS2403-08-08-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD TX Tube OD A
mm		 C
mm		 CX
mm		 D
mm		 DX
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 GX A/F
mm		 H
mm
NS2403-02-02-SS Stainless Steel 1/8" - 35.6mm 15.3mm - 12.7mm - 2.4mm 11mm 11mm - 22.4mm
NS2403-04-02-SS Stainless Steel 1/4" 1/8" 38.6mm 17.8mm 15.3mm 15.3mm 12.7mm 2.4mm 14mm 14mm 11mm 24.6mm
NS2403-04-04-SS Stainless Steel 1/4" - 40.9mm 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 26.2mm
NS2403-06-02-SS Stainless Steel 3/8" 1/8" 40.9mm 19.3mm 15.3mm 16.8mm 12.7mm 2.4mm 16mm 17mm 11mm 26.9mm
NS2403-06-04-SS Stainless Steel 3/8" 1/4" 43.2mm 19.3mm 17.8mm 16.8mm 15.3mm 4.8mm 16mm 17mm 14mm 28.5mm
NS2403-06-06-SS Stainless Steel 3/8" - 45.0mm 19.3mm - 16.8mm - 7.1mm 16mm 17mm - 30.2mm
NS2403-08-06-SS Stainless Steel 1/2" 3/8" 48.5mm 21.8mm 19.3mm 22.9mm 16.8mm 7.1mm 22mm 22mm 17mm 31.0mm
NS2403-08-08-SS Stainless Steel 1/2" - 51.3mm 21.8mm - 22.9mm - 10.4mm 22mm 22mm - 31.0mm
NS2403-12-08-SS Stainless Steel 3/4" 1/2" 53.6mm 21.8mm 21.8mm 24.4mm 22.9mm 10.4mm 27mm 28.5mm 22mm 33.3mm
NS2403-12-10-SS Stainless Steel - - - - - - - - - - - -
NS2403-12-12-SS Stainless Steel 3/4" - 53.6mm 21.8mm - 24.4mm - 15.8mm 27mm 28.5mm - 33.3mm
NS2403-16-16-SS Stainless Steel 1" - 64.8mm 26.4mm - 31.2mm - 22.3mm 35mm 38mm - 40.4mm
NS2403-20-20-SS Stainless Steel 1-1/4" - 92.2mm 38.9mm - 41.2mm - 27.6mm 46mm 50mm - 48.0mm

NS2403-04-04-B Brass 1/4" - 40.9mm 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 26.2mm
NS2403-06-04-B Brass 3/8" 1/4" 43.2mm 19.3mm 17.8mm 16.8mm 15.3mm 4.8mm 16mm 17mm 14mm 28.5mm
NS2403-06-06-B Brass 3/8" - 45.0mm 19.3mm - 16.8mm - 7.1mm 16mm 17mm - 30.2mm
NS2403-08-08-B Brass 1/2" - 51.3mm 21.8mm - 22.9mm - 10.4mm 22mm 22mm - 31.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
