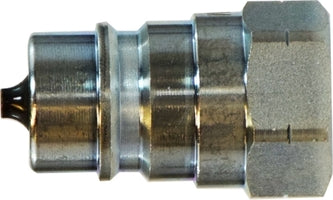

NV12M (NV-12-M) Midland Hydraulic Quick Disconnect - AG Interchange Female Pipe Plug - 1/2" Body Size - 1/2" Female NPT - Steel

NV12M by Midland | Hydraulic Quick Disconnect | AG Interchange Female Pipe Plug | 1/2" Body Size | 1/2" Female NPT | Steel

Save $8.35 Save $8.35
$20.88
$20.88 - $20.88
$20.88
$12.53
$12.53 - $12.53
$12.53

Midland Industries
Hydraulic Quick Disconnects: Hydraulic Jack - AG Series Agricultural Interchange - Steel

Inventory @ Manufacturers Warehouse: 17 Units
Specifications for Variant SKU: NV12M Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male ISO-5675 Farm (Agricultural) QD Interchange, 1/2in Female NPT
Material(s): Steel
Features:
  • Heavy duty heat treated poppet: valves are standard with rugged, specially-designed seals made of nitrite for leak-free performance in the toughest application.
  • High-strength steel valve guides designed for high flow rates and made extra tough for agricultural service.
  • Dependable hardened chrome alloy steel locking balls. Heat treated plugs and sleeves.
  • Standard seals temp range -40°F to +250°F
Interchanges:
Snap-Tite 60 Series
AG Interchange Female Pipe Coupler AG Interchange Female Pipe Plug
Part Number Body
Size		 Female
NPT		 Max. Working Pressure Burst Pressure Part Number Body
Size		 Female
NPT		 Max. Working Pressure Burst Pressure
NV14F
(NV-14-F) 		1/4" 1/4" 4,000 PSI 21,000 PSI NV14M
(NV-14-M) 		1/4" 1/4" 4,000 PSI 21,000 PSI
NV38F
(NV-38-F) 		3/8" 3/8" 4,000 PSI 23,100 PSI NV38M
(NV-38-M) 		3/8" 3/8" 4,000 PSI 23,100 PSI
NV12F
(NV-12-F) 		1/2" 1/2" 4,000 PSI 16,500 PSI NV12M
(NV-12-M) 		1/2" 1/2" 4,000 PSI 16,500 PSI
NV34F
(NV-34-F) 		3/4" 3/4" 3,000 PSI 10,300 PSI NV34M
(NV-34-M) 		3/4" 3/4" 3,000 PSI 10,300 PSI
NV1F
(NV-1-F) 		1" 1" 3,000 PSI 13,000 PSI NV1M
(NV-1-M) 		1" 1" 3,000 PSI 13,000 PSI
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
