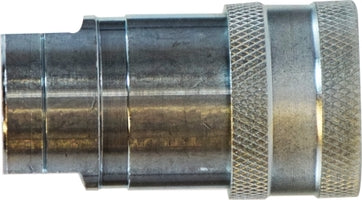

NV38F (NV-38-F) Midland Hydraulic Quick Disconnect - AG Interchange Female Pipe Coupler - 3/8" Body Size - 3/8" Female NPT - Steel

NV38F by Midland | Hydraulic Quick Disconnect | AG Interchange Female Pipe Coupler | 3/8" Body Size | 3/8" Female NPT | Steel

Save $6.67

$16.67

$16.67 - $16.67

$16.67

$10.00

$10.00 - $10.00

$10.00

Midland Industries
Hydraulic Quick Disconnects: Hydraulic Jack - AG Series Agricultural Interchange - Steel

Inventory @ Manufacturers Warehouse: 143 Units

Specifications for Variant SKU: NV38F Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female ISO-5675 Farm (Agricultural) QD Interchange, 3/8in Female NPT
Material(s):	Steel

Features:
Heavy duty heat treated poppet: valves are standard with rugged, specially-designed seals made of nitrite for leak-free performance in the toughest application. High-strength steel valve guides designed for high flow rates and made extra tough for agricultural service. Dependable hardened chrome alloy steel locking balls. Heat treated plugs and sleeves. Standard seals temp range -40°F to +250°F

Interchanges:
Snap-Tite 60 Series

AG Interchange Female Pipe Coupler					AG Interchange Female Pipe Plug

Part Number	Body Size	Female NPT	Max. Working Pressure	Burst Pressure	Part Number	Body Size	Female NPT	Max. Working Pressure	Burst Pressure
NV14F (NV-14-F)	1/4"	1/4"	4,000 PSI	21,000 PSI	NV14M (NV-14-M)	1/4"	1/4"	4,000 PSI	21,000 PSI
NV38F (NV-38-F)	3/8"	3/8"	4,000 PSI	23,100 PSI	NV38M (NV-38-M)	3/8"	3/8"	4,000 PSI	23,100 PSI
NV12F (NV-12-F)	1/2"	1/2"	4,000 PSI	16,500 PSI	NV12M (NV-12-M)	1/2"	1/2"	4,000 PSI	16,500 PSI
NV34F (NV-34-F)	3/4"	3/4"	3,000 PSI	10,300 PSI	NV34M (NV-34-M)	3/4"	3/4"	3,000 PSI	10,300 PSI
NV1F (NV-1-F)	1"	1"	3,000 PSI	13,000 PSI	NV1M (NV-1-M)	1"	1"	3,000 PSI	13,000 PSI
