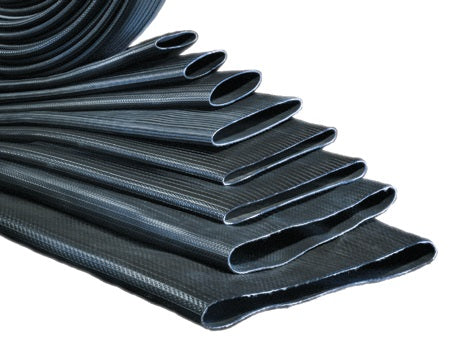

OF10-200X200 OROFLEX® 10 by Kuriyama | OF10 Series | Rubber Discharge Layflat Hose | PVC/Nitrile | 2" Size | 2.110" Hose ID | Black | 200ft Length

Save $253.67

$793.67

$793.67 - $793.67

$793.67

$540.00

$540.00 - $540.00

$540.00

Kuriyama
OROFLEX® 10 | OF10 Series | Rubber Discharge Layflat Hose

Designed for agriculture, irrigation, pump discharge, cable covering, and a many other applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 200 Foot

Specifications for Variant SKU: OF10-200X200 Kuriyama \| 200 \|
Brand:	OROFLEX 10
Series:	OF10 Series
Hose Color(s):	Black
Internal Diameter:	2.110in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	Nitrile/PVC Blend

Other Features:
Applications:	Agriculture Cable covering Dewatering Drainage Floatation booms Industrial washdown Irrigation Limited oil and chemical applications Pump discharge Watering
Construction:	Black PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)
Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Made in Europe.

Part Number 50ft	Part Number 100ft	Part Number 200ft	Part Number 660ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure (PSI)	Tensile Strength
Part Number 50ft	Part Number 100ft	Part Number 200ft	Part Number 660ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F	(lbs)
-	-	OF10-150X200	-	1-1/2"	38.1mm	1.520"	38.6mm	0.075"	200 PSI	600 PSI	6,500 lbs
-	-	OF10-200X200	-	2"	50.8mm	2.110"	53.6mm	0.075"	200 PSI	600 PSI	8,250 lbs
-	-	OF10-250X200	-	2-1/2"	63.5mm	2.590"	65.8mm	0.087"	200 PSI	600 PSI	11,300 lbs
-	OF10-300X100	OF10-300X200	-	3"	76.2mm	3.181"	80.8mm	0.091"	175 PSI	460 PSI	11,750 lbs
OF10-400X050	OF10-400X100	OF10-400X200	OF10-400X660	4"	101.6mm	4.200"	106.7mm	0.094"	175 PSI	435 PSI	17,400 lbs
-	-	OF10-500X200	-	5"	127.0mm	5.020"	127.5mm	0.106"	175 PSI	435 PSI	20,650 lbs
OF10-600X050	OF10-600X100	OF10-600X200	OF10-600X660	6"	152.4mm	6.098"	154.9mm	0.118"	175 PSI	435 PSI	36,000 lbs
OF10-800X050	OF10-800X100	-	-	8"	203.2mm	8.051"	204.5mm	0.134"	145 PSI	360 PSI	51,950 lbs
