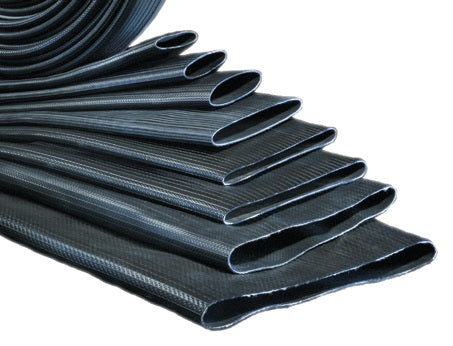

OF10-400X050 OROFLEX® 10 by Kuriyama | OF10 Series | Rubber Discharge Layflat Hose | PVC/Nitrile | 4" Size | 4.200" Hose ID | Black | 50ft Length

OF10-400X050 OROFLEX® 10 by Kuriyama | OF10 Series | Rubber Discharge Layflat Hose | PVC/Nitrile | 4" Size | 4.200" Hose ID | Black | 50ft Length

Save $226.30 Save $226.30
$518.80
$518.80 - $518.80
$518.80
$292.50
$292.50 - $292.50
$292.50

Kuriyama
OROFLEX® 10 | OF10 Series | Rubber Discharge Layflat Hose

Designed for agriculture, irrigation, pump discharge, cable covering, and a many other applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 50 Foot

Specifications for Variant SKU: OF10-400X050 Kuriyama | 50 |
Brand: OROFLEX 10
Series: OF10 Series
Hose Color(s): Black
Internal Diameter: 4.200in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: Nitrile/PVC Blend

SPECIFICATIONS

Applications: Agriculture
Cable covering
Dewatering
Drainage
Floatation booms
Industrial washdown
Irrigation
Limited oil and chemical applications
Pump discharge
Watering
Construction: Black PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C)
Other Features:
  • Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure
(PSI)		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
- - OF10-150X200 - 1-1/2" 38.1mm 1.520" 38.6mm 0.075" 200 PSI 600 PSI 6,500 lbs
- - OF10-200X200 - 2" 50.8mm 2.110" 53.6mm 0.075" 200 PSI 600 PSI 8,250 lbs
- - OF10-250X200 - 2-1/2" 63.5mm 2.590" 65.8mm 0.087" 200 PSI 600 PSI 11,300 lbs
- OF10-300X100 OF10-300X200 - 3" 76.2mm 3.181" 80.8mm 0.091" 175 PSI 460 PSI 11,750 lbs
OF10-400X050 OF10-400X100 OF10-400X200 OF10-400X660 4" 101.6mm 4.200" 106.7mm 0.094" 175 PSI 435 PSI 17,400 lbs
- - OF10-500X200 - 5" 127.0mm 5.020" 127.5mm 0.106" 175 PSI 435 PSI 20,650 lbs
OF10-600X050 OF10-600X100 OF10-600X200 OF10-600X660 6" 152.4mm 6.098" 154.9mm 0.118" 175 PSI 435 PSI 36,000 lbs
OF10-800X050 OF10-800X100 - - 8" 203.2mm 8.051" 204.5mm 0.134" 145 PSI 360 PSI 51,950 lbs
