PF354NC-02-250R Alfagomma Piranhaflex™ by Kuriyama | PF354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose | Non-Conductive | 1/8" ID | 0.322" OD | 3000 PSI | 250ft Length

Save $24.62

$221.59

$221.59 - $221.59

$221.59

$196.97

$196.97 - $196.97

$196.97

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF354NC Series | SAE 100R7 | Non-Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 250 Feet

Quantity

Specifications for Variant SKU: PF354NC-02-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF354NC Series
Hose Color(s):	Orange
Dash Size:	-02
Internal Diameter:	0.125in
Outer Diameter:	0.322in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7, SAE J517, REACH Compliant
Compatible with the following Series:	P Series \| A Series

Other Features:
Application:	Industrial equipment and vehicles (construction, agriculture, material handling, etc.) Aerial equipment (PFP354NC only) Hydraulic oil and lubrication lines	SAE Rating:	Meets or exceeds SAE 100R7 (ANSI A92.2)
Other Ratings:	REACH (Non-Conductive ONLY), SAE J517	Tube:	Nylon

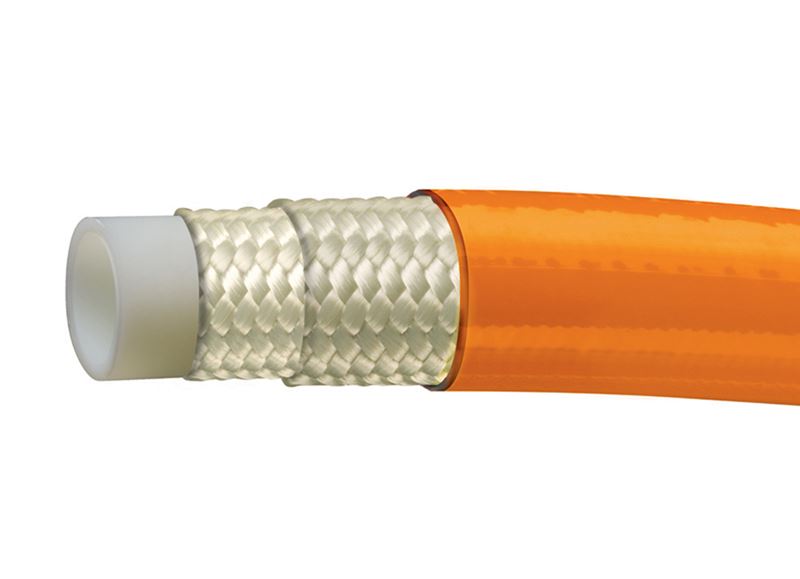

Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant polyurethane. Available with conductive black cover (PF354), or non-conductive "NC", orange cover (PF354NC series)
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Meets ANSI A92.2 (PF354NC Series only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min. Pin Pricked Cover (PF354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'
