PF354NC-06BX Alfagomma Piranhaflex™ by Kuriyama | PF354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 50ft Length
PF354NC-06BX Alfagomma Piranhaflex™ by Kuriyama | PF354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 50ft Length
PF354NC-06BX Alfagomma Piranhaflex™ by Kuriyama | PF354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 50ft Length

PF354NC-06BX Alfagomma Piranhaflex™ by Kuriyama | PF354NC Series | SAE 100R7 | Thermoplastic Hydraulic Hose | Non-Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 50ft Length

Save $42.87 Save $42.87
$150.04
$150.04 - $150.04
$150.04
$107.17
$107.17 - $107.17
$107.17

Kuriyama of America Inc.

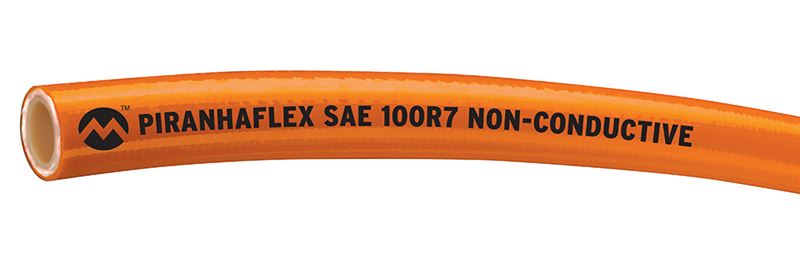

Alfagomma Piranhaflex | PF354NC Series | SAE 100R7 | Non-Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 50 Feet

Specifications for Variant SKU: PF354NC-06BX Kuriyama | 50 |
Brand: Alfagomma, Piranhaflex
Series: PF354NC Series
Hose Color(s): Orange
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.650in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7, SAE J517, REACH Compliant
Compatible with the following Series: P Series  |   A Series
Application: Industrial equipment and vehicles (construction, agriculture, material handling, etc.)
Aerial equipment (PFP354NC only)
Hydraulic oil and lubrication lines		 SAE Rating: Meets or exceeds SAE 100R7 (ANSI A92.2)
Other Ratings: REACH (Non-Conductive ONLY), SAE J517 Tube: Nylon

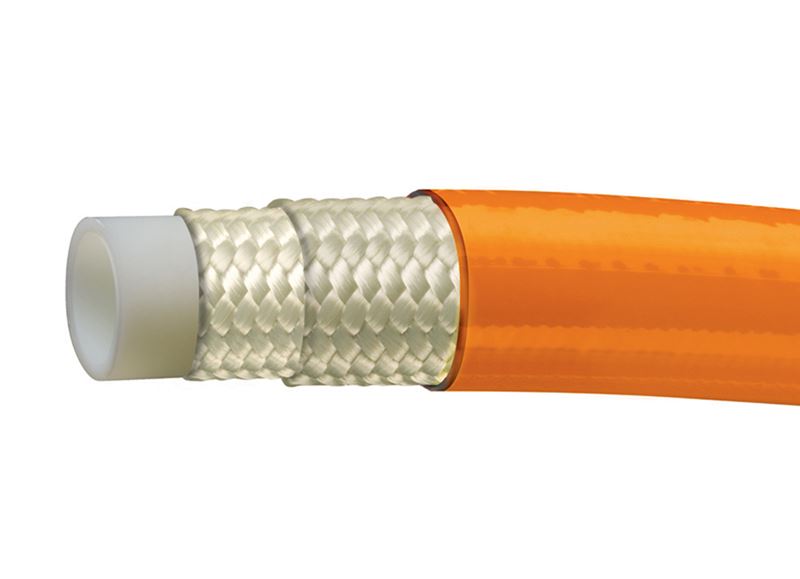

Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane. Available with conductive black cover (PF354), or non-conductive "NC", orange cover (PF354NC series)
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Meets ANSI A92.2 (PF354NC Series only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min.
  • Pin Pricked Cover (PF354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'
PF354 Series | Conductive
Part Number
250ft Reel		 Part Number
50ft Box		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF354-02-250R PF354-02BX 1/8" 3.6mm 0.322" 8.2mm 3000 PSI 0.75" 19mm 0.03 lbs/ft
PF354-03-250R PF354-03BX 3/16" 4.8mm 0.415" 10.5mm 3000 PSI 0.75" 19mm 0.05 lbs/ft
PF354-04-250R PF354-04BX 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.06 lbs/ft
PF354-05-250R PF354-05BX 5/16" 8.1mm 0.580" 14.7mm 2500 PSI 1.75" 44mm 0.08 lbs/ft
PF354-06-250R PF354-06BX 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.11 lbs/ft
PF354-08-250R PF354-08BX 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.16 lbs/ft
PF354-12-250R PF354-12BX 3/4" 19.1mm 1.050" 26.7mm 1250 PSI 6.00" 1521mm 0.22 lbs/ft
PF354-16-250R PF354-16BX 1" 25.4mm 1.360" 34.5mm 1000 PSI 3.00" 203mm 0.35 lbs/ft
PF354NC Series | Non-Conductive
Part Number
250ft Reel		 Part Number
50ft Box		 Part Number
By the Foot		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF354NC-02-250R PF354NC-02BX - 1/8" 3.6mm 0.322" 8.2mm 3000 PSI 0.75" 19mm 0.03 lbs/ft
PF354NC-03-250R PF354NC-03BX - 3/16" 4.8mm 0.415" 10.5mm 3000 PSI 0.75" 19mm 0.05 lbs/ft
PF354NC-04-250R PF354NC-04BX - 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.06 lbs/ft
PF354NC-05-250R PF354NC-05BX - 5/16" 8.1mm 0.580" 14.7mm 2500 PSI 1.75" 44mm 0.08 lbs/ft
PF354NC-06-250R PF354NC-06BX - 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.11 lbs/ft
PF354NC-08-250R PF354NC-08BX - 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.16 lbs/ft
PF354NC-12-250R PF354NC-12BX PF354NC-12 3/4" 19.1mm 1.050" 26.7mm 1250 PSI 6.00" 1521mm 0.22 lbs/ft
PF354NC-16-250R PF354NC-16BX - 1" 25.4mm 1.360" 34.5mm 1000 PSI 3.00" 203mm 0.35 lbs/ft
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
