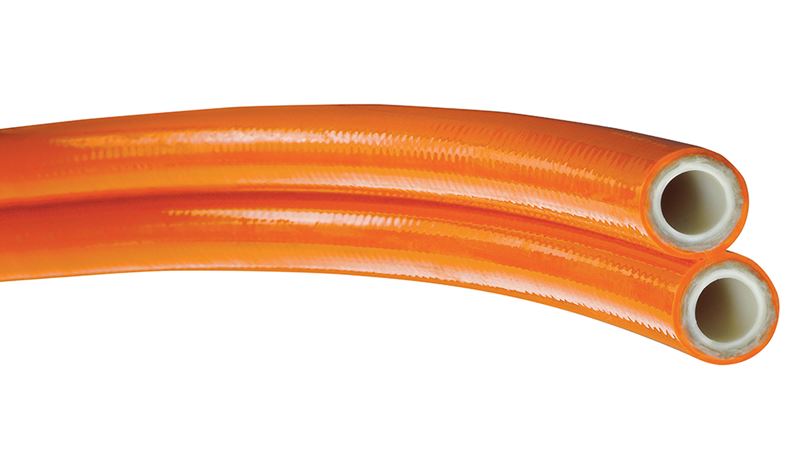

PF354NCTL-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF354NCTL Series | SAE 100R7 | Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 1/2" ID | 0.834" OD | 2000 PSI | 250ft Length

Save $582.33

$2,038.16

$2,038.16 - $2,038.16

$2,038.16

$1,455.83

$1,455.83 - $1,455.83

$1,455.83

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF354NCTL Series | SAE 100R7 | Twin Line Non-Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 250 Feet

Specifications for Variant SKU: PF354NCTL-08-250R Kuriyama \| 250 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF354NCTL Series
Hose Color(s):	Orange
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.834in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7, SAE J517, REACH Compliant
Special Properties:	Twin Line
Compatible with the following Series:	P Series \| A Series

Other Features:
Application:	Industrial equipment and vehicles (construction, agriculture, material handling, etc.) Aerial equipment (PF354NCTL only) Hydraulic oil and lubrication lines	SAE Rating:	Meets or exceeds SAE 100R7 (ANSI A92.2)
Other Ratings:	REACH (Non-Conductive ONLY), SAE J517	Tube:	Nylon
Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant polyurethane. Available with conductive black cover (PF354TL), or non-conductive "NC", orange cover (PF354NCTL series)
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight - Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Meets ANSI A92.2 (PF354NCTL Series only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min. Pin Pricked Cover (PF354TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'

PF354TL Series \| Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF354TL-04-250R	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.10 lbs/ft
PF354TL-06-250R	3/8"	9.7mm	0.650"	16.5mm	2250 PSI	2.00"	51mm	0.20 lbs/ft
PF354TL-08-250R	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.32 lbs/ft

PF354NCTL Series \| Non-Conductive
Part Number 250ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF354NCTL-04-250R	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.10 lbs/ft
PF354NCTL-06-250R	3/8"	9.7mm	0.650"	16.5mm	2250 PSI	2.00"	51mm	0.20 lbs/ft
PF354NCTL-08-250R	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.32 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
