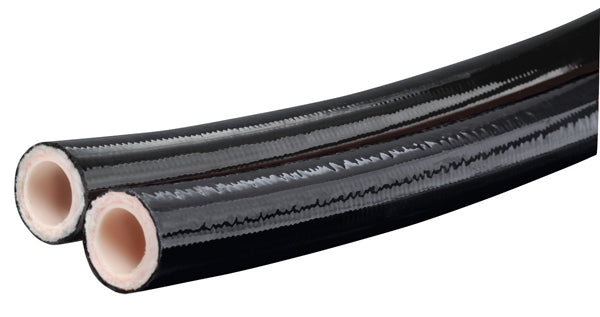

PF354TL-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF354TL Series | SAE 100R7 | Twin Line Thermoplastic Hydraulic Hose | Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 250ft Length

PF354TL-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF354TL Series | SAE 100R7 | Twin Line Thermoplastic Hydraulic Hose | Conductive | 3/8" ID | 0.650" OD | 2250 PSI | 250ft Length

Save $418.33 Save $418.33
$1,464.16
$1,464.16 - $1,464.16
$1,464.16
$1,045.83
$1,045.83 - $1,045.83
$1,045.83

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF354TL Series | SAE 100R7 | Twin Line Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF354TL-06-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF354TL Series
Hose Color(s): Black
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.650in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7, SAE J517
Special Properties: Conductive Hose Cover, Pin Pricked Hose Cover, Twin Line
Compatible with the following Series: P Series  |   A Series
Application: Industrial equipment and vehicles (construction, agriculture, material handling, etc.)
Aerial equipment (PF354NCTL only)
Hydraulic oil and lubrication lines		 SAE Rating: Meets or exceeds SAE 100R7 (ANSI A92.2)
Other Ratings: REACH (Non-Conductive ONLY), SAE J517 Tube: Nylon
Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane. Available with conductive black cover (PF354TL), or non-conductive "NC", orange cover (PF354NCTL series)
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Meets ANSI A92.2 (PF354NCTL Series only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min.
  • Pin Pricked Cover (PF354TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'
PF354TL Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF354TL-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.10 lbs/ft
PF354TL-06-250R 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.20 lbs/ft
PF354TL-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.32 lbs/ft
PF354NCTL Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF354NCTL-04-250R 1/4" 6.4mm 0.496" 12.6mm 2750 PSI 1.50" 38mm 0.10 lbs/ft
PF354NCTL-06-250R 3/8" 9.7mm 0.650" 16.5mm 2250 PSI 2.00" 51mm 0.20 lbs/ft
PF354NCTL-08-250R 1/2" 13.1mm 0.834" 21.2mm 2000 PSI 3.00" 76mm 0.32 lbs/ft
