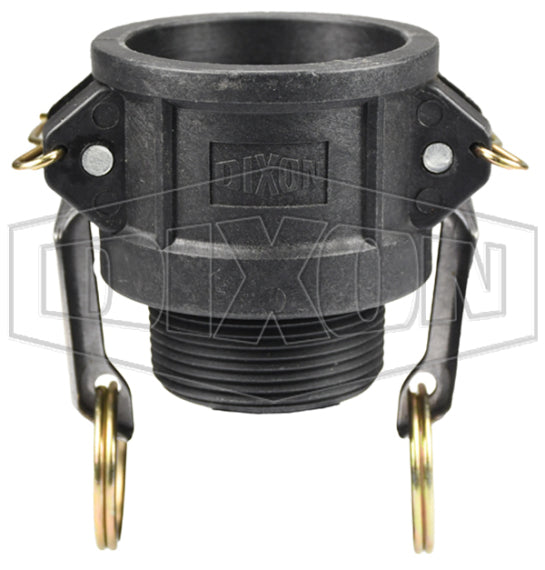

PPB150 by Dixon Valve | Cam & Groove Coupler | Type B | 1-1/2" Coupler x 1-1/2" Male NPT | Polypropylene

PPB150 by Dixon Valve | Cam & Groove Coupler | Type B | 1-1/2" Coupler x 1-1/2" Male NPT | Polypropylene

Save $6.43 Save $6.43
$16.08
$16.08 - $16.08
$16.08
$9.65
$9.65 - $9.65
$9.65

Dixon Valve
Cam & Groove | Type B Coupler | Coupler x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: PPB150 Dixon
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Male NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2".
  • 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4".
Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
Specifications:
  • Maximum operating pressure: 125 PSI (1/2" - 1"), 100 PSI (1-1/4" - 2"), 60 PSI (3"), and 50 PSI (4"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70°F (21°C) with a standard seal installed.
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
Glass-Filled Polypropylene
Part Number		 Coupler x Male NPT Size Max. Operating
Pressure		 Replacement
Gasket
Part Number		 Replacement
Key Rings
Part Number		 Replacement
Safety Clip
Part Number
PPB50 3/4" x 1/2" 125 PSI 75-G-EPR R200SS GSAFETYCLIP
PPB75 3/4" 125 PSI 75-G-EPR R200SS GSAFETYCLIP
PPB100 1" 125 PSI 100-G-EPR R200SS GSAFETYCLIP
PPB125 1-1/2" x 1-1/4" 100 PSI 125-G-EPR R200SS GSAFETYCLIP
PPB150 1-1/2" 100 PSI 150-G-EPR R200SS GSAFETYCLIP
PPB200 2" 100 PSI 200-G-EPR R200SS GSAFETYCLIP
PPB300 3" 60 PSI 300-G-EPR R200SS GSAFETYCLIP
PPB400* 4" 50 PSI 400-G-EPR R200SS GSAFETYCLIP

* 4" coupler has 4 handles.
