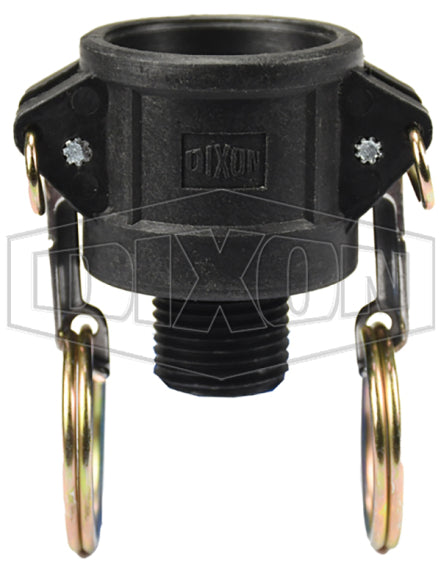

PPB50 by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type B | 3/4" Coupler x 1/2" Male NPT | Polypropylene

PPB50 by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type B | 3/4" Coupler x 1/2" Male NPT | Polypropylene

$3.96

Dixon Valve
Cam & Groove | Type B Coupler | Coupler x Male NPT

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: PPB50 Dixon
MAWP: 125
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3/4in Female Cam & Groove X 1/2in Male NPT
Material(s): Polypropylene
Features:
  • 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2".
  • 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4".
Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
Specifications:
  • Maximum operating pressure: 125 PSI (1/2" - 1"), 100 PSI (1-1/4" - 2"), 60 PSI (3"), and 50 PSI (4"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70°F (21°C) with a standard seal installed.
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
Glass-Filled Polypropylene
Part Number		 Coupler x Male NPT Size Max. Operating
Pressure		 Replacement
Gasket
Part Number		 Replacement
Key Rings
Part Number		 Replacement
Safety Clip
Part Number
PPB50 3/4" x 1/2" 125 PSI 75-G-EPR R200SS GSAFETYCLIP
PPB75 3/4" 125 PSI 75-G-EPR R200SS GSAFETYCLIP
PPB100 1" 125 PSI 100-G-EPR R200SS GSAFETYCLIP
PPB125 1-1/2" x 1-1/4" 100 PSI 125-G-EPR R200SS GSAFETYCLIP
PPB150 1-1/2" 100 PSI 150-G-EPR R200SS GSAFETYCLIP
PPB200 2" 100 PSI 200-G-EPR R200SS GSAFETYCLIP
PPB300 3" 60 PSI 300-G-EPR R200SS GSAFETYCLIP
PPB400* 4" 50 PSI 400-G-EPR R200SS GSAFETYCLIP

* 4" coupler has 4 handles.
