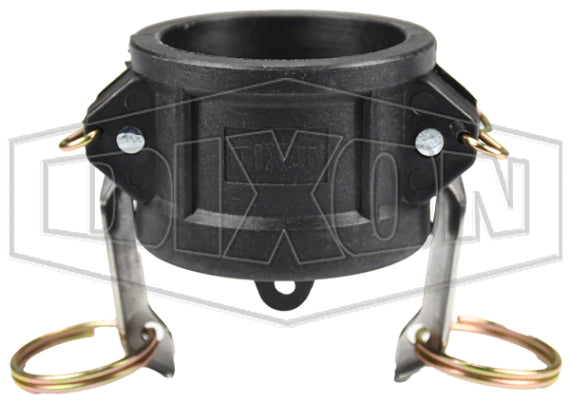

PPH150 by Dixon Valve | Cam & Groove Dust Cap | Type H | 1-1/2" Size | Polypropylene

Name: PPH150 by Dixon Valve | Cam & Groove Dust Cap | Type H | 1-1/2" Size | Polypropylene
Brand: Dixon
SKU: PPH150 Dixon
Price: 9.2 USD
Availability: InStock

Save $4.36

$13.56

$13.56 - $13.56

$13.56

$9.20

$9.20 - $9.20

$9.20

Dixon Valve
Cam & Groove | Type H | Dust Cap

Designed for use with liquids.

Quantity

Specifications for Variant SKU: PPH150 Dixon
Cam Type:	Other
Ends Configuration:	1-1/2in Female Cam & Groove
Material(s):	Polypropylene
Seal Material(s):	EPDM

Construction:
Manufactured from glass-filled polypropylene. EPDM gaskets. 304 stainless steel handles and pins.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. Polypropylene cam and groove should not be mixed with metal fittings. NOT recommended for use with PTFE gaskets.

Glass-Filled Polypropylene Part Number	Size	Replacement Gasket Part Number	Replacement Key Rings Part Number	Replacement Safety Clip Part Number
PPH75	3/4"	75-G-EPR	R200SS	GSAFETYCLIP
PPH100	1"	100-G-EPR	R200SS	GSAFETYCLIP
PPH150	1-1/2"	150-G-EPR	R200SS	GSAFETYCLIP
PPH200	2"	200-G-EPR	R200SS	GSAFETYCLIP
PPH300	3"	300-G-EPR	R200SS	GSAFETYCLIP
PPH400	4"	400-G-EPR	R200SS	GSAFETYCLIP

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
