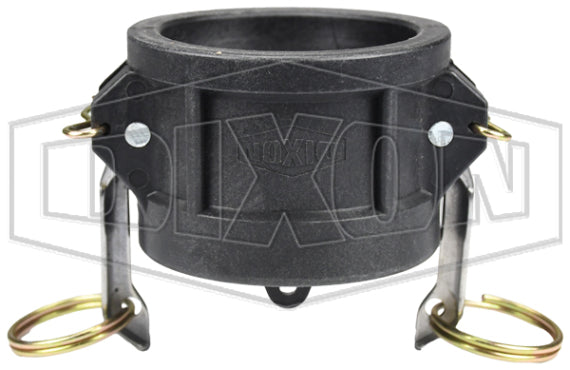

PPH200 by Dixon Valve | Cam & Groove Dust Cap | Type H | 2" Size | Polypropylene

PPH200 by Dixon Valve | Cam & Groove Dust Cap | Type H | 2" Size | Polypropylene

Save $1.06 Save $1.06
$9.54
$9.54 - $9.54
$9.54
$8.48
$8.48 - $8.48
$8.48

Dixon Valve
Cam & Groove | Type H | Dust Cap

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: PPH200 Dixon
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove
Material(s): Polypropylene
Seal Material(s): EPDM
Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • Polypropylene cam and groove should not be mixed with metal fittings.
  • NOT recommended for use with PTFE gaskets.
Glass-Filled Polypropylene
Part Number		 Size Replacement
Gasket
Part Number		 Replacement
Key Rings
Part Number		 Replacement
Safety Clip
Part Number
PPH75 3/4" 75-G-EPR R200SS GSAFETYCLIP
PPH100 1" 100-G-EPR R200SS GSAFETYCLIP
PPH150 1-1/2" 150-G-EPR R200SS GSAFETYCLIP
PPH200 2" 200-G-EPR R200SS GSAFETYCLIP
PPH300 3" 300-G-EPR R200SS GSAFETYCLIP
PPH400 4" 400-G-EPR R200SS GSAFETYCLIP
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
