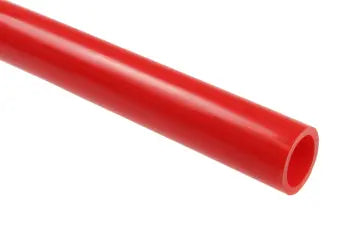

PT0406-100R by Coilhose | Tubing | 1/4" OD x 1/8" ID | 0.062" Wall Thickness | Red | Polyurethane | 100ft

PT0406-100R by Coilhose | Tubing | 1/4" OD x 1/8" ID | 0.062" Wall Thickness | Red | Polyurethane | 100ft

Save $6.95 Save $6.95
$62.52
$62.52 - $62.52
$62.52
$55.57
$55.57 - $55.57
$55.57
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/4" OD x 1/8" ID
Specifications for Variant SKU: PT0406-100R Coilhose
Hose Color(s): Red
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0406-100K PT0406-500K PT0406-1000K Black 1/4" x 1/8" 0.062" 265 PSI
PT0406-100B PT0406-500B PT0406-1000B Blue
PT0406-100X PT0406-500X - Gray
PT0406-100G PT0406-500G PT0406-1000G Green
PT0406-100Q PT0406-500Q - Orange
PT0406-100P - - Purple
PT0406-100R PT0406-500R PT0406-1000R Red
PT0406-100TB PT0406-500TB PT0406-1000TB Transparent Blue
PT0406-100TC PT0406-500TC PT0406-1000TC Transparent Clear
PT0406-100TG PT0406-500TG PT0406-1000TG Transparent Green
PT0406-100TQ PT0406-500TQ PT0406-1000TQ Transparent Orange
PT0406-100W PT0406-500W PT0406-1000W White
PT0406-100Y PT0406-500Y PT0406-1000Y Yellow
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
