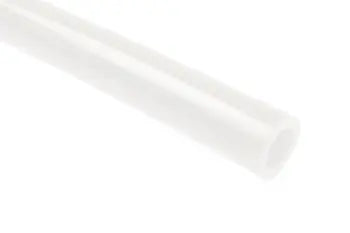

PT0406-500W by Coilhose | Tubing | 1/4" OD x 1/8" ID | 0.062" Wall Thickness | White | Polyurethane | 500ft

PT0406-500W by Coilhose | Tubing | 1/4" OD x 1/8" ID | 0.062" Wall Thickness | White | Polyurethane | 500ft

Save $33.79 Save $33.79
$304.10
$304.10 - $304.10
$304.10
$270.31
$270.31 - $270.31
$270.31
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 1/4" OD x 1/8" ID
Specifications for Variant SKU: PT0406-500W Coilhose
Hose Color(s): {\White\
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0406-100K PT0406-500K PT0406-1000K Black 1/4" x 1/8" 0.062" 265 PSI
PT0406-100B PT0406-500B PT0406-1000B Blue
PT0406-100X PT0406-500X - Gray
PT0406-100G PT0406-500G PT0406-1000G Green
PT0406-100Q PT0406-500Q - Orange
PT0406-100P - - Purple
PT0406-100R PT0406-500R PT0406-1000R Red
PT0406-100TB PT0406-500TB PT0406-1000TB Transparent Blue
PT0406-100TC PT0406-500TC PT0406-1000TC Transparent Clear
PT0406-100TG PT0406-500TG PT0406-1000TG Transparent Green
PT0406-100TQ PT0406-500TQ PT0406-1000TQ Transparent Orange
PT0406-100W PT0406-500W PT0406-1000W White
PT0406-100Y PT0406-500Y PT0406-1000Y Yellow
