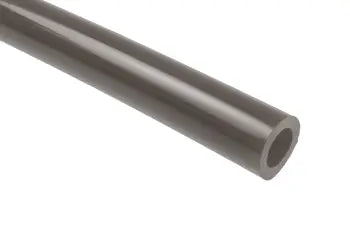

PT0606-100X by Coilhose | Tubing | 3/8" OD x 1/4" ID | .062" Wall Thickness | Gray | Polyurethane | 100ft

PT0606-100X by Coilhose | Tubing | 3/8" OD x 1/4" ID | .062" Wall Thickness | Gray | Polyurethane | 100ft

Save $59.38 Save $59.38
$148.45
$148.45 - $148.45
$148.45
$89.07
$89.07 - $89.07
$89.07
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 3/8" OD x 1/4" ID
Specifications for Variant SKU: PT0606-100X Coilhose
Hose Color(s): Gray
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0606-100W PT0606-500W White 3/8" x 1/4" 0.062" 170 PSI
PT0606-100Y PT0606-500Y Yellow
PT0606-100TY PT0606-500TY Transparent Yellow
PT0606-100TR PT0606-500TR Transparent Red
PT0606-100TC
PT0606-100TCD* 		PT0606-500TC Transparent Clear
PT0606-100K
PT0606-100KD* 		PT0606-500K Black
PT0606-100B PT0606-500B Blue
PT0606-100X PT0606-500X Gray
PT0606-100G PT0606-500G Green
PT0606-100Q PT0606-500Q Orange
PT0606-100R PT0606-500R Red
PT0606-100TB
PT0606-100TBD* 		PT0606-500TB Transparent Blue
* Comes in Dispenser Box
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
