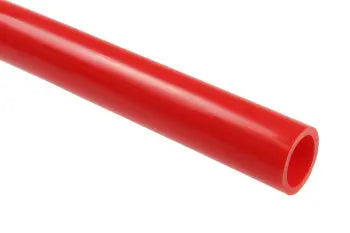

PT0606-500R by Coilhose | Tubing | 3/8" OD x 1/4" ID | .062" Wall Thickness | Red | Polyurethane | 500ft

Save $276.71

$691.78

$691.78 - $691.78

$691.78

$415.07

$415.07 - $415.07

$415.07

Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 3/8" OD x 1/4" ID

Specifications for Variant SKU: PT0606-500R Coilhose
Hose Color(s):	Red
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 100ft Length	Part Number 500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT0606-100W	PT0606-500W	White	3/8" x 1/4"	0.062"	170 PSI
PT0606-100Y	PT0606-500Y	Yellow
PT0606-100TY	PT0606-500TY	Transparent Yellow
PT0606-100TR	PT0606-500TR	Transparent Red
PT0606-100TC PT0606-100TCD*	PT0606-500TC	Transparent Clear
PT0606-100K PT0606-100KD*	PT0606-500K	Black
PT0606-100B	PT0606-500B	Blue
PT0606-100X	PT0606-500X	Gray
PT0606-100G	PT0606-500G	Green
PT0606-100Q	PT0606-500Q	Orange
PT0606-100R	PT0606-500R	Red
PT0606-100TB PT0606-100TBD*	PT0606-500TB	Transparent Blue

* Comes in Dispenser Box

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.

Shop Parts by Coilhose Pneumatics
