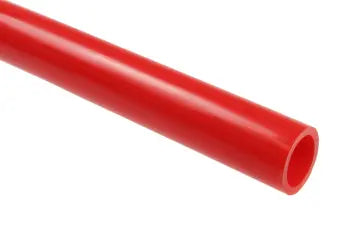

PT1220-250R by Coilhose | Tubing | 12mm OD x 8mm ID | 2.0 mm Wall Thickness | Red | Polyurethane | 250ft

PT1220-250R by Coilhose | Tubing | 12mm OD x 8mm ID | 2.0 mm Wall Thickness | Red | Polyurethane | 250ft

Save $259.13 Save $259.13
$647.82
$647.82 - $647.82
$647.82
$388.69
$388.69 - $388.69
$388.69
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 12.0mm OD x 8.0mm ID
Specifications for Variant SKU: PT1220-250R Coilhose
Hose Color(s): Red
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
250ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT1220-50K PT1220-250K Black 12.0mm x 8.0mm 2.0mm 155 PSI
PT1220-50Y PT1220-250Y Yellow
PT1220-50W - White
PT1220-50TC PT1220-250TC Transparent Clear
PT1220-50TB PT1220-250TB Transparent Blue
PT1220-50R PT1220-250R Red
PT1220-50B PT1220-250B Blue
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
