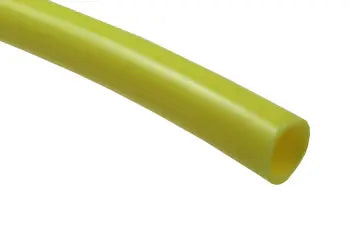

PT1220-50Y by Coilhose | Tubing | 12mm OD x 8mm ID | 2.0 mm Wall Thickness | Yellow | Polyurethane | 50ft

Save $9.76

$87.85

$87.85 - $87.85

$87.85

$78.09

$78.09 - $78.09

$78.09

Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 12.0mm OD x 8.0mm ID

Quantity

Specifications for Variant SKU: PT1220-50Y Coilhose
Hose Color(s):	Yellow
Material(s):	Polyurethane

Overview:
Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:
Compatible with Coilock™ Metric Push-To-Connect Fittings

Temperature Range:	-40° F to 165° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	1/8" - 9/16" +/- .005" 3/4" +/- .007"	Working Pressure:	3 to 1 Safety Factor
Compliance:	NSF61, Meets UL94HB	UV Stabilized:	Yes
Material:	95A Polyurethane

Part Number 50ft Length	Part Number 250ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PT1220-50K	PT1220-250K	Black	12.0mm x 8.0mm	2.0mm	155 PSI
PT1220-50Y	PT1220-250Y	Yellow
PT1220-50W	-	White
PT1220-50TC	PT1220-250TC	Transparent Clear
PT1220-50TB	PT1220-250TB	Transparent Blue
PT1220-50R	PT1220-250R	Red
PT1220-50B	PT1220-250B	Blue

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
