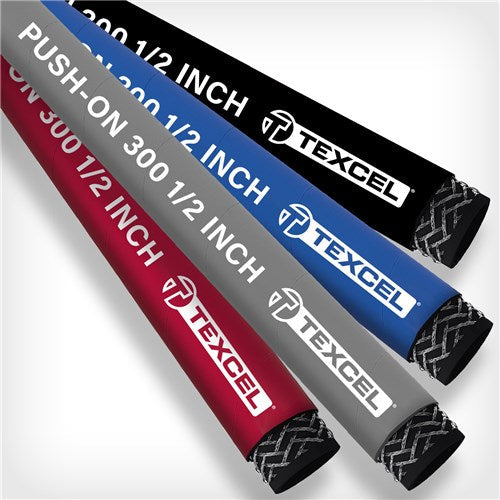

PUSH-4-250-BLUE by Texcel | TEX-PUSH-ON 300 Series | Push-On Hose | 1/4" Hose ID | 300 PSI | Blue | 250ft Length

Save $127.80

$447.30

$447.30 - $447.30

$447.30

$319.50

$319.50 - $319.50

$319.50

Texcel
TEX-PUSH-ON 300 Series | 300psi Push-On Hose

Package Quantity: 250 Units

Specifications for Variant SKU: PUSH-4-250-BLUE Texcel \| 250 \|
Series:	TEX-PUSH-ON 300 Series
Hose Color(s):	Blue
Internal Diameter:	0.25in
Outer Diameter:	0.50in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/PVC Blend

Technical Data:
Description:	Low pressure braided hose for quick and easy insertion of push-on fittings with no special crimping tools required. Its internal polyester reinforcement design allows for excellent coupling retention. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleumbased products.	Tube:	Black, NBR (ARPM Class A)
Cover:	Black, Red, Blue NBR/PVC (ARPM Class A)	Reinforcement:	Reinforced braided polyester cords
Safety Factor:	4:1	Temperature:	-40°F to +212°F (-40°C to +100°C)
Branding:	TEXCEL® TEX-PUSH-ON	Packaging:	1pc Reel

Part Number	Dash	Hose ID (Inch)	Hose ID (Dn)	Hose OD (Inch)	Hose OD (mm)	Working Pressure (psi)	Burst Pressure (psi)	Weight (lbs/ft)
PUSH-4-250	4	1/4"	6	1/2"	13	300	1200	0.10 lbs
PUSH-6-250	6	3/8"	10	33/50"	17	300	1200	0.14 lbs
PUSH-8-250	8	1/2"	12	81/100"	21	300	1200	0.19 lbs
PUSH-10-250	10	5/8"	16	47/50"	24	300	1200	0.22 lbs
PUSH-12-250	12	3/4"	19	1-9/100"	28	300	1200	0.28 lbs
PUSH-16-250	16	1"	25	1-2/5"	35.5	250	1000	0.46 lbs
PUSH-4-250-BLACK	4	1/4"	6	1/2"	13	300	1200	0.10 lbs
PUSH-6-250-BLACK	6	3/8"	10	33/50"	17	300	1200	0.14 lbs
PUSH-8-250-BLACK	8	1/2"	12	81/100"	21	300	1200	0.19 lbs
PUSH-10-250-BLACK	10	5/8"	16	47/50"	24	300	1200	0.22 lbs
PUSH-12-250-BLACK	12	3/4"	19	1-9/100"	28	300	1200	0.28 lbs
PUSH-16-250-BLACK	16	1"	25	1-2/5"	35.5	250	1000	0.46 lbs
PUSH-4-250-RED	4	1/4"	6	1/2"	13	300	1200	0.10 lbs
PUSH-6-250-RED	6	3/8"	10	33/50"	17	300	1200	0.14 lbs
PUSH-8-250-RED	8	1/2"	12	81/100"	21	300	1200	0.19 lbs
PUSH-10-250-RED	10	5/8"	16	47/50"	24	300	1200	0.22 lbs
PUSH-12-250-RED	12	3/4"	19	1-9/100"	28	300	1200	0.28 lbs
PUSH-16-250-RED	16	1"	25	1-2/5"	35.5	250	1000	0.46 lbs
PUSH-4-250-BLUE	4	1/4"	6	1/2"	13	300	1200	0.10 lbs
PUSH-6-250-BLUE	6	3/8"	10	33/50"	17	300	1200	0.14 lbs
PUSH-8-250-BLUE	8	1/2"	12	81/100"	21	300	1200	0.19 lbs
PUSH-10-250-BLUE	10	5/8"	16	47/50"	24	300	1200	0.22 lbs
PUSH-12-250-BLUE	12	3/4"	19	1-9/100"	28	300	1200	0.28 lbs
PUSH-16-250-BLUE	16	1"	25	1-2/5"	35.5	250	1000	0.46 lbs
