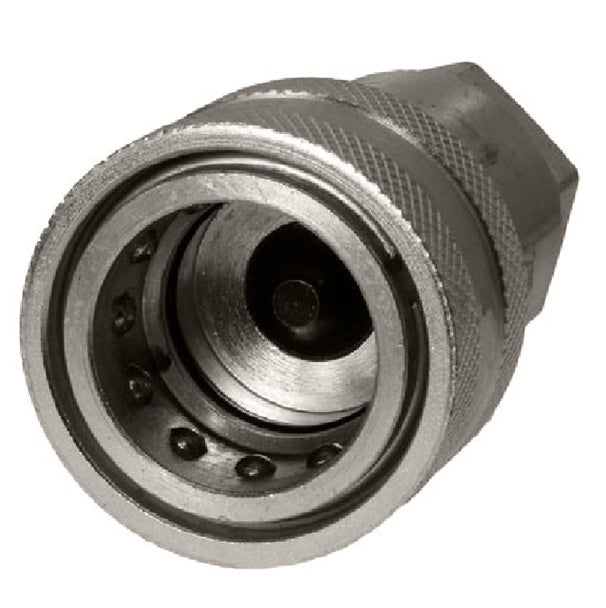

QC-ISOA06-F-04N by Couplamatic | Hydraulic Quick Coupler | ISO A Series | 1/4" Body Size x 1/4-18 Female NPT | Socket | Zinc Plated

QC-ISOA06-F-04N by Couplamatic | Hydraulic Quick Coupler | ISO A Series | 1/4" Body Size x 1/4-18 Female NPT | Socket | Zinc Plated

Save $6.84 Save $6.84
$17.10
$17.10 - $17.10
$17.10
$10.26
$10.26 - $10.26
$10.26

Couplamatic Inc
Hydraulic Quick Couplers - ISO A Series Couplers
Specifications for Variant SKU: QC-ISOA06-F-04N Couplamatic
Series: ISO A Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female ISO-A QD Interchange, 1/4in Female NPT
Features:
  • ISO A Series Couplers are made to the ISO 7241:2014 Series A Standard.
  • The couplers are a high quality product with nitrile seals and balanced spings in the poppets.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mobile
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A"Length "B"Length "C"Length
QC-ISOA06-F-04N 1/4" 06 Female 1/4-18 NPT 5800 PSI 31900 PSI 26100 PSI 27550 PSI 2.8" 1.9" -
QC-ISOA06-M-04N 1/4" 06 Male 1/4-18 NPT 5800 PSI 31900 PSI 26100 PSI 27550 PSI 2.8" - 1.4"

QC-ISOA10-F-06N 3/8" 10 Female 3/8-18 NPT 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" 2.2" -
QC-ISOA10-M-06N 3/8" 10 Male 3/8-18 NPT 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" - 1.4"

QC-ISOA10-F-06S 3/8" 10 Female 9/16x18 SAE 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" 2.2" -
QC-ISOA10-M-06S 3/8" 10 Male 9/16x18 SAE 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" - 1.4"

QC-AGPT12-F-08N 1/2" 12 Female 1/2-14 NPT 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-08N 1/2" 12 Male 1/2-14 NPT 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-AGPT12-F-08S 1/2" 12 Female 3/4x16 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-08S 1/2" 12 Male 3/4x16 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-AGPT12-F-10S 1/2" 12 Female 7/8x14 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-10S 1/2" 12 Male 7/8x14 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-ISOA19-F-12N 3/4" 19 Female 3/4-14 NPT 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" 3.1" -
QC-ISOA19-M-12N 3/4" 19 Male 3/4-14 NPT 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" - 2.2"

QC-ISOA19-F-12S 3/4" 19 Female 1-1/16x12 SAE 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" 3.1" -
QC-ISOA19-M-12S 3/4" 19 Male 1-1/16x12 SAE 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" - 2.2"

QC-ISOA25-F-16N 1" 25 Female 1-11-1/2 NPT 3625 PSI 17400 PSI 14500 PSI 15950 PSI 4.7" 3.7" -
QC-ISOA25-M-16N 1" 25 Male 1-11-1/2 NPT 3625 PSI 17400 PSI 14500 PSI 15950 PSI 4.7" - 2.4"
